- Hign-concerned Chemical: None
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X2F-XL
- Processor Brand: Intel
- Processor Model: N100/N6005
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
|
Processors |
Cores & Threads |
Max Turbo Frequency |
TDP |
|
Intel N100 |
4 cores, 4 threads |
3.40 GHz |
6W |
|
Intel Pentium N6005 |
4 cores, 4 threads |
3.30 GHz |
10W |

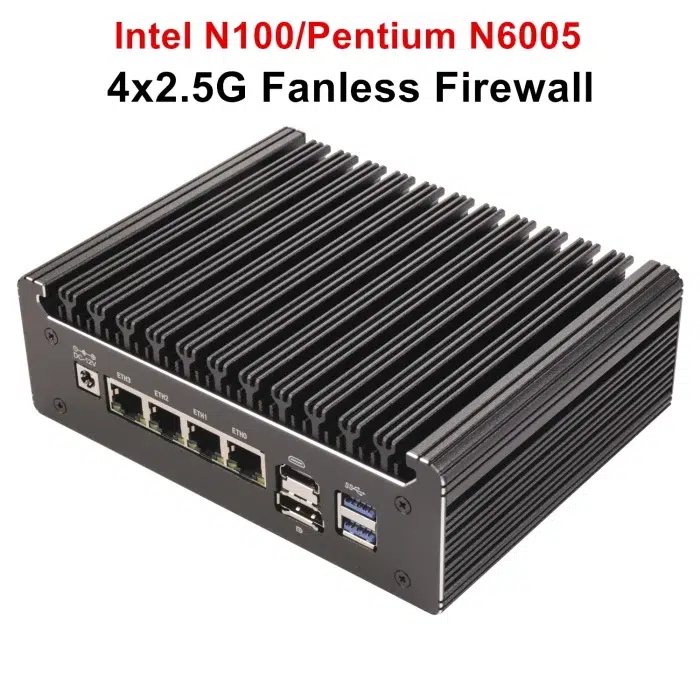

Product Highlight
-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.2, 2xUSB2.0, 1xType-C(data only), 1xCOM RJ45.
-Intel N100: 1xDDR4 SODIMM non-ecc ram slot, support max 32GB 3200MHz.
Intel Pentium N6005: 2xDDR4 SODIMM non-ecc ram slots, support max 64GB 2666/2933MHz.
-Support two storage: 1xM.2 2280 NVMe/PCIe3.0x1 SSD+1×2.5''SATA3.0 7mm SSD/HDD.
-Support 1xHDMI2.0 and 1xDP1.4 dual 4K@60Hz video display.
-1xMini PCIE slot+1xSIM slot, supports WiFi or 4G LTE signal.(optional to buy)
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Solid aluminum fanless system larger case 163*126*55mm with Y-shape fins has better cooling efficiency with a temperature 15-20℃ lower and performance 25-30% higher than regular versions on the market. It has a longer working life time, noiseless and durable to work as long as 7×24 hours. A 8010 fan was included in package for DIY if you still worry about heat.
Package List
1xMini PC
1xPower Adapter
1xPower Cable
1xSATA Cable
1xScrews Bag
1×8010 fan(gift)
Notice
Suggest to install newest version of following systems with supportable kernel for intel i226-V: pfSense-CE 2.7, OPNsense 23.x, pfSense Plus, OpenWrt, ESXi, Proxmox, CentOS etc.
Intel N100 model:
Intel Pentium N6005 model:
