- Processor Main Frequency: Depends on CPU
- Use: Multimedia
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: ≥ 1.5TB
- Model Number: MS-01
- Processor Brand: Intel
- Processor Model: Core
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
|
Processors |
Cores & Threads |
L3 Cache |
TDP |
Max Turbo Frequency |
Graphics |
|
Core i9-12900H |
14 cores, 20 threads |
24M |
45W |
5.00 GHz |
Intel Iris Xe Graphics Max 1.45GHz |
|
Core i9-13900H |
14 cores, 20 threads |
24M |
45W |
5.40 GHz |
Intel Iris Xe Graphics Max 1.50GHz |

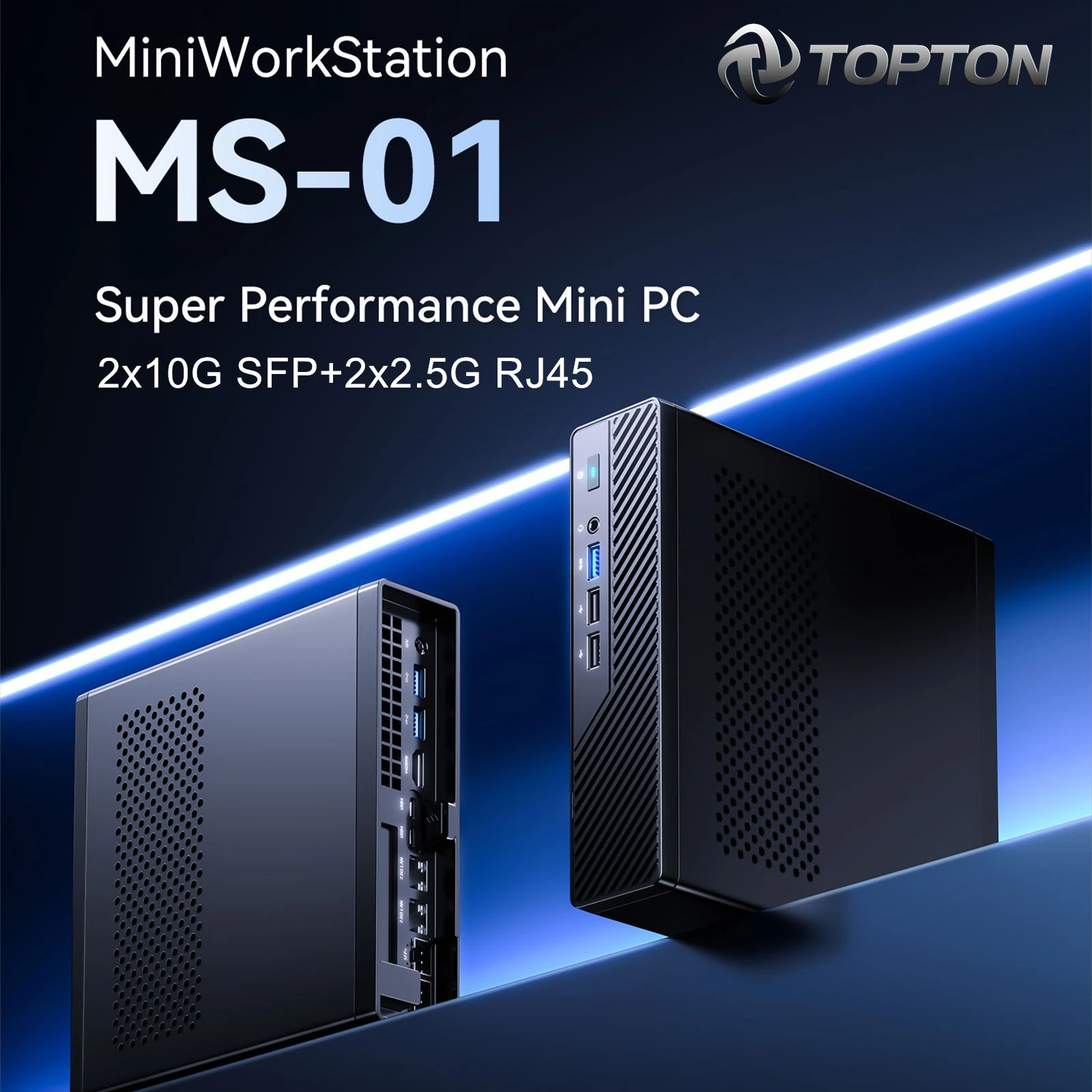

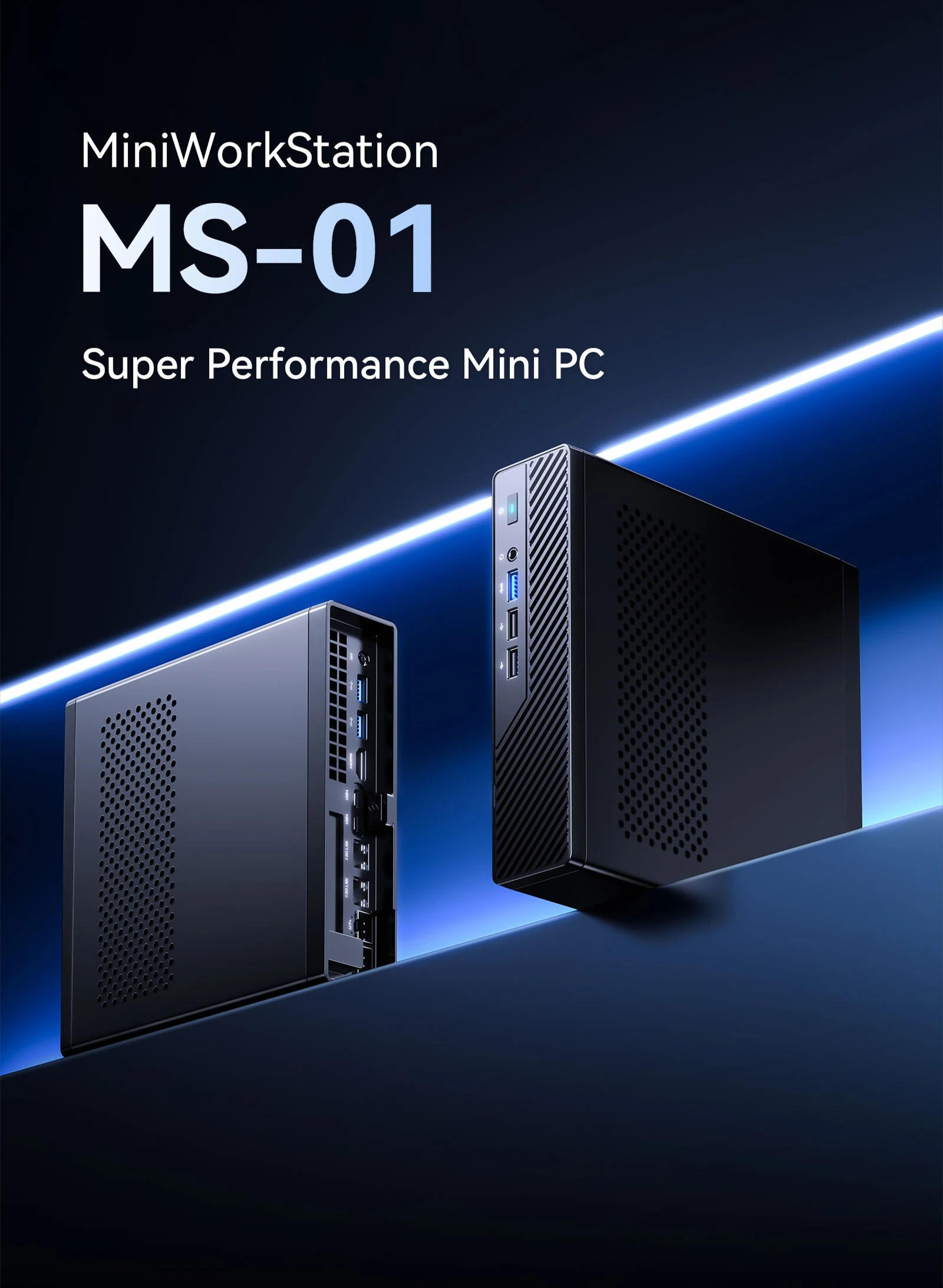

MiniWorkStation MS-01
Intel® Core™ i9-13900H
14 cores/20 threads (24M cache, up to 5.40 GHz)
Intel® Core™ i9-12900H
14 cores/20 threads (24M cache, up to 5.00 GHz)
Intel® Iris® Xe Graphics (Graphics frequency 1.5GHz/1.45GHz)
DDR5-4800MHz Dual Channel (SODIMM slots x2, up to a total maximum of 64GB)

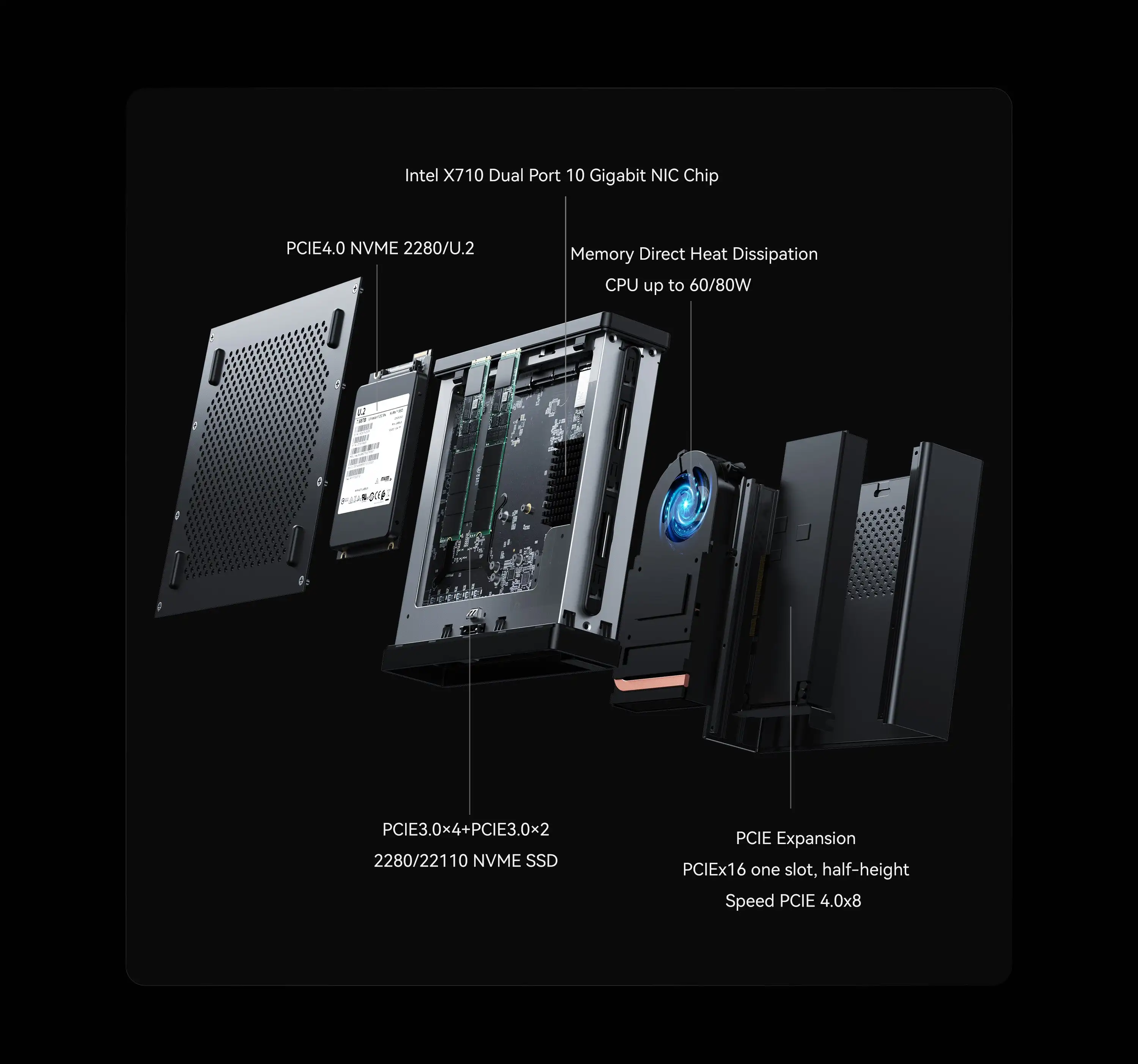

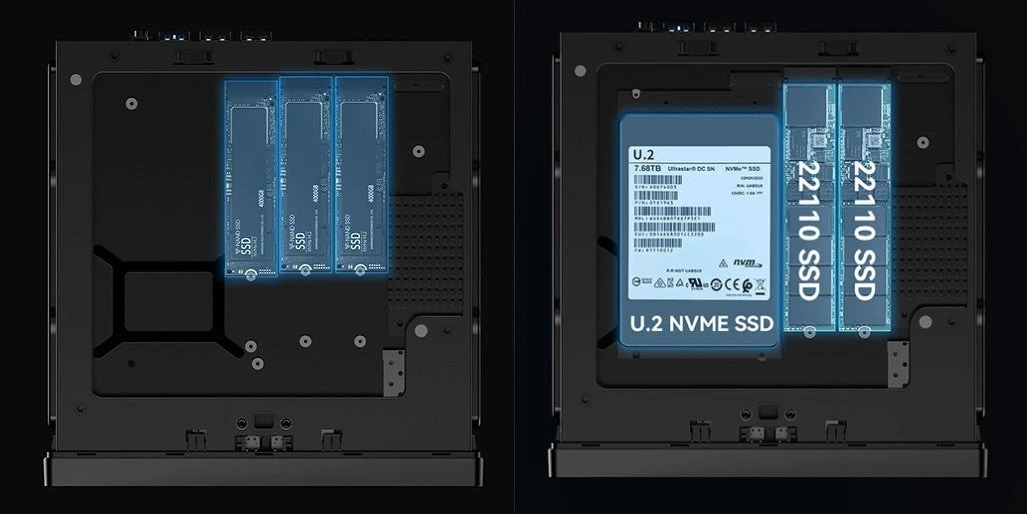

M.2 2280 NVMe SSD slot (Alt U.2) (PCIe 4.0 x4) x1
M.2 2280/22110 NVMe SSD slot (PCIe 3.0 x4) x1
M.2 2280/22110 NVMe SSD slot (PCIe 3.0 x2) x1

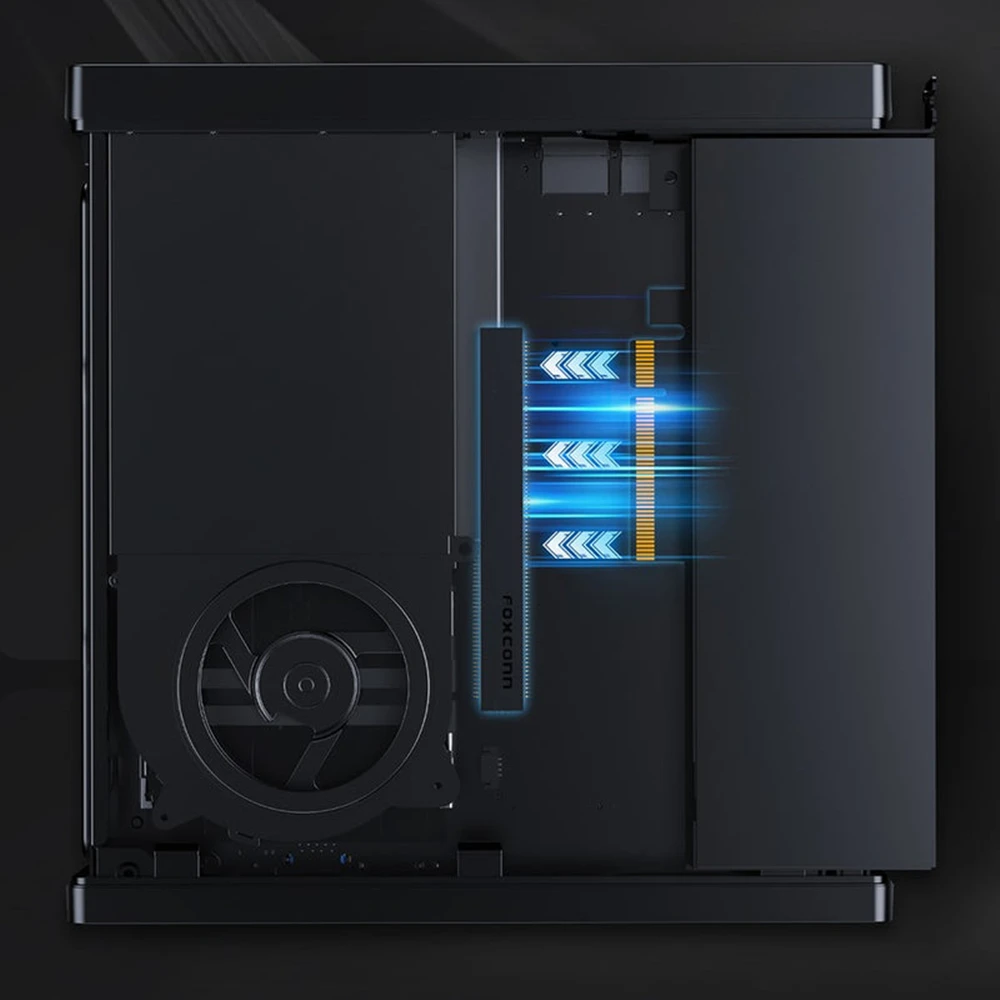

1* PCIe 4.0 x16 slot (Half-height, single-slot, supports up to PCIe 4.0 x8 speed)
M.2 2230 Wi-Fi support (Wi-Fi 6, BT5.2)

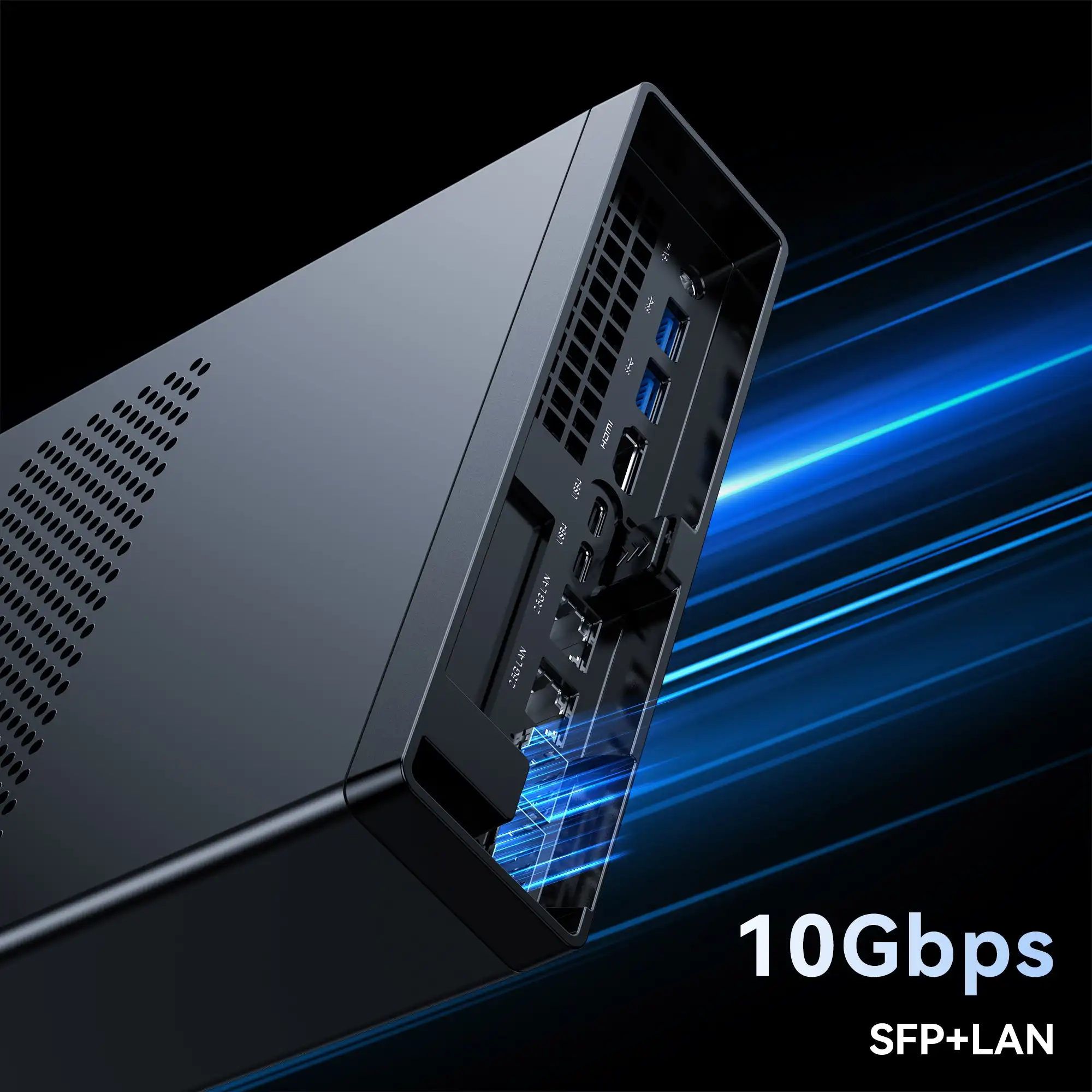

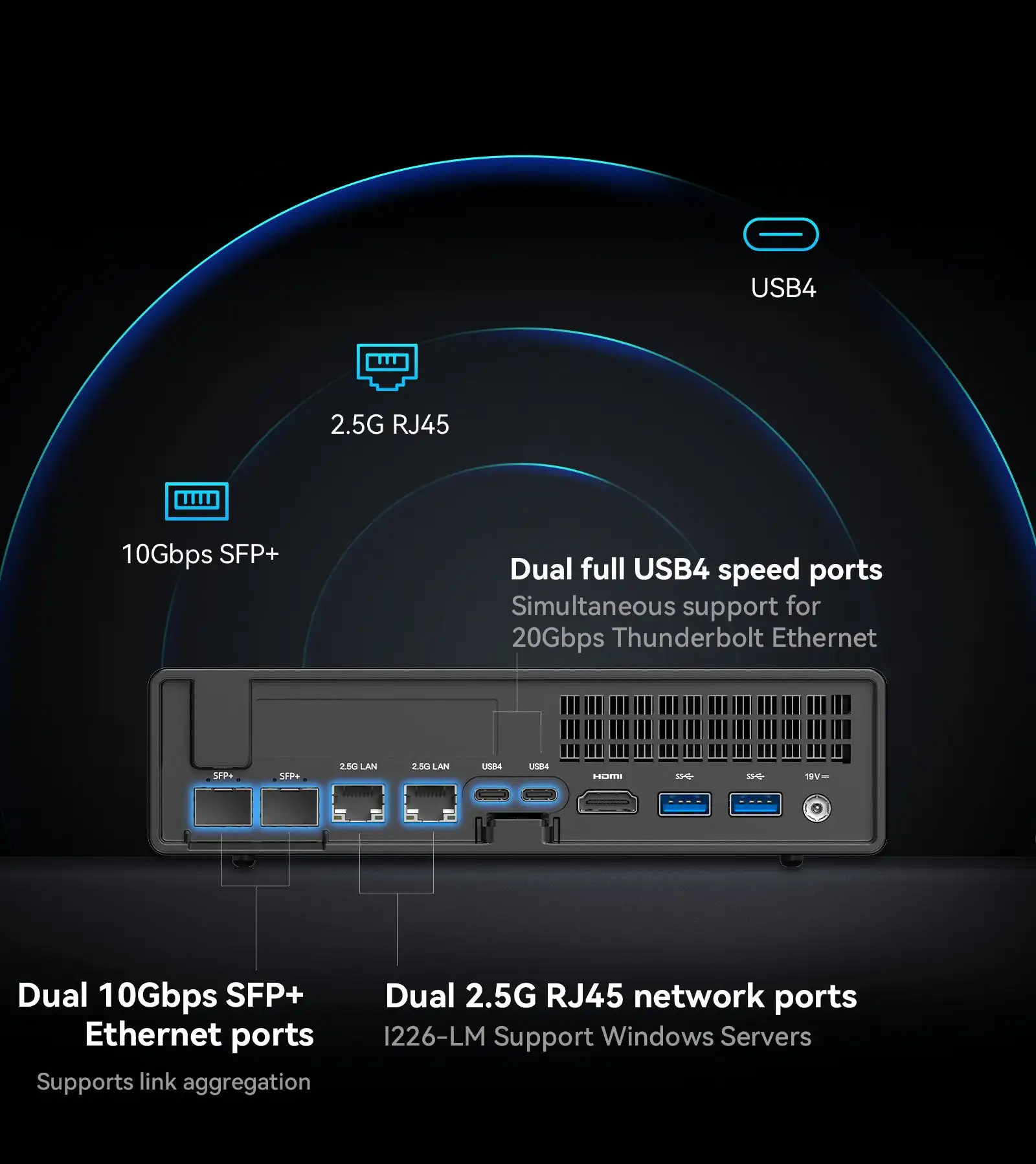

① 10Gbps SFP+ LAN ×2

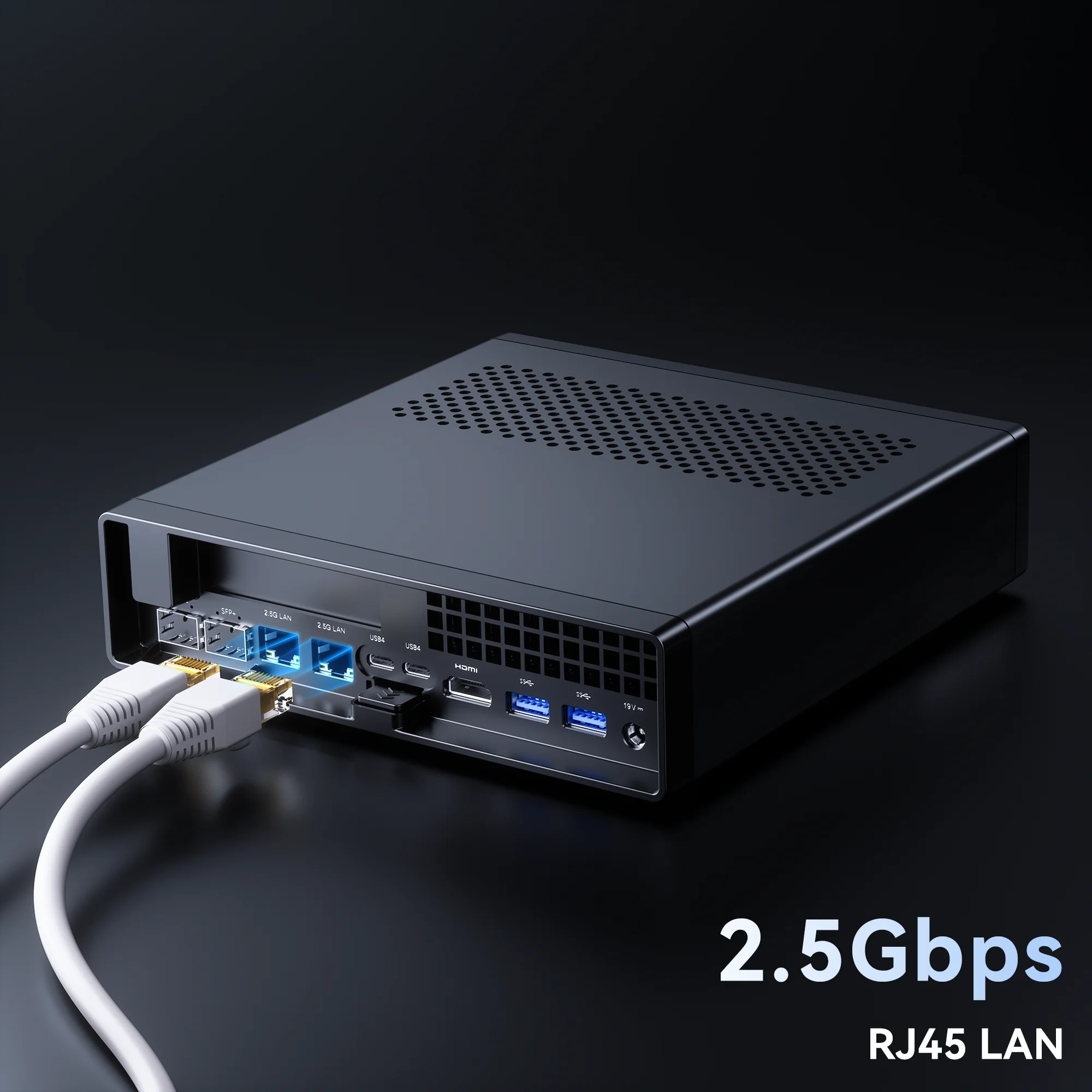

② 2.5Gbps RJ45 LAN ×2
① HDMI 2.0 (4K@60Hz)
② USB 4 (8K@30Hz) x2
HDMI x1 / 3.5mm combo jack x1
DC 19V (including power adapter)

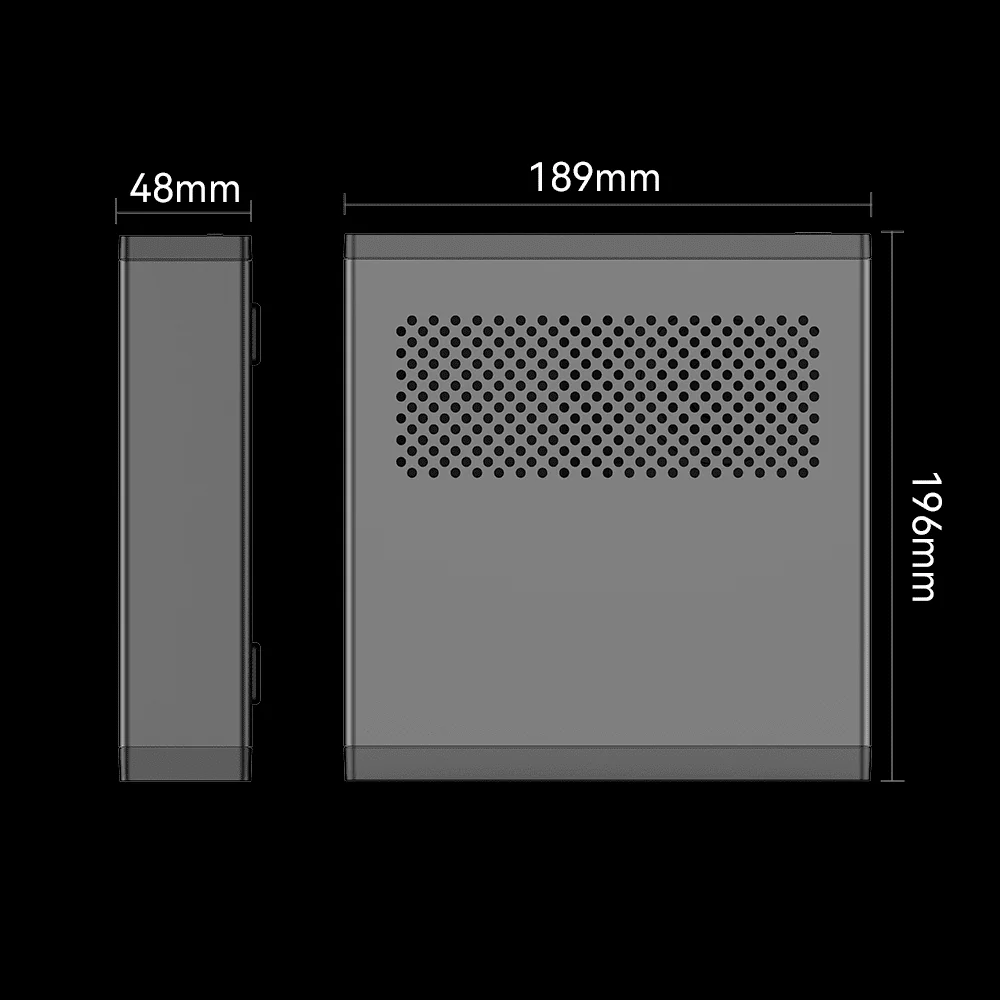

196×189×48ｍｍ

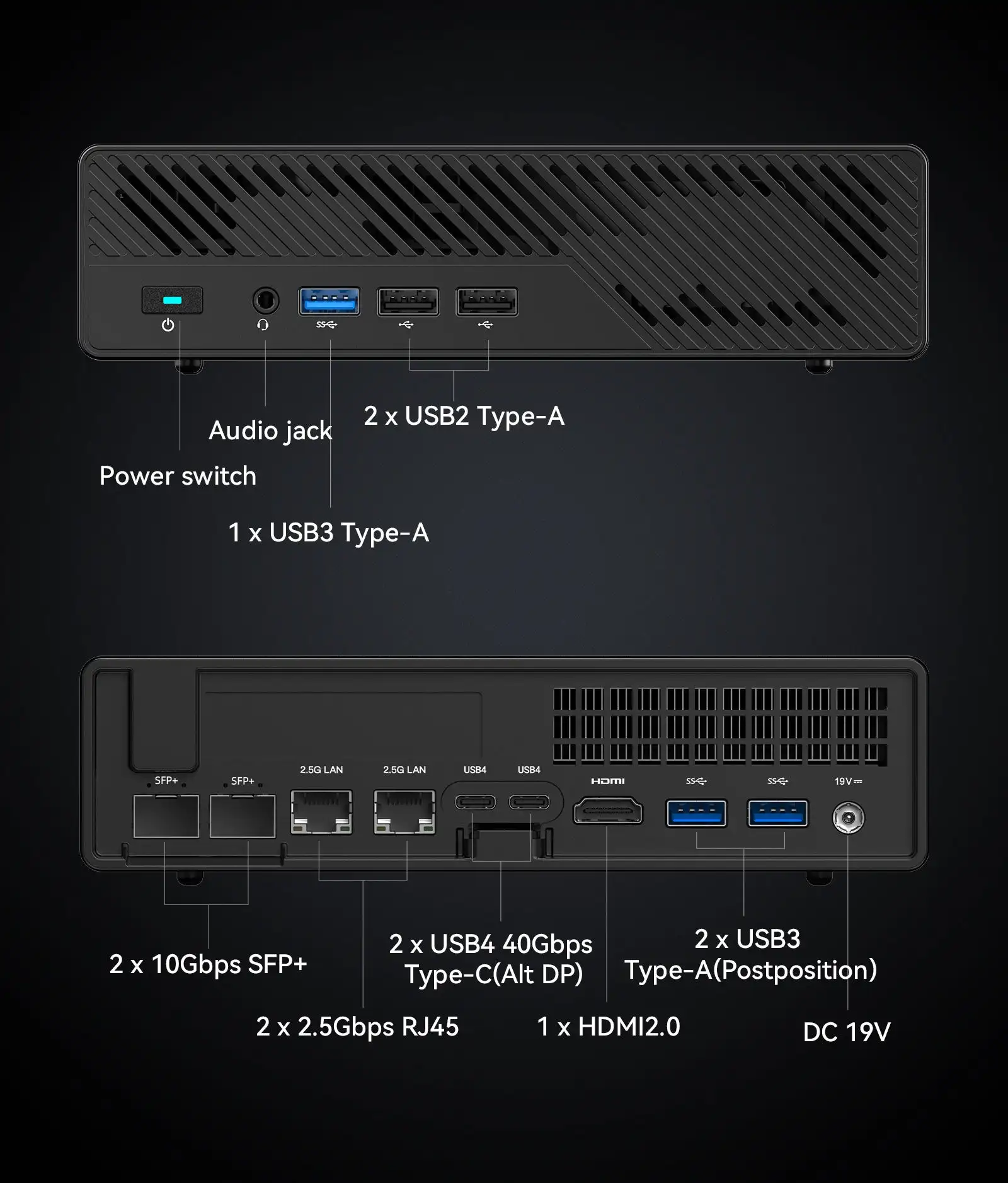

10G SFP+ ports x2
RJ45 2.5G Ethernet ports x2
USB3.2 Gen2 Type-A ports x2
USB3.2 Gen1 Type-A ports x2
USB2.0 Type-A ports x2

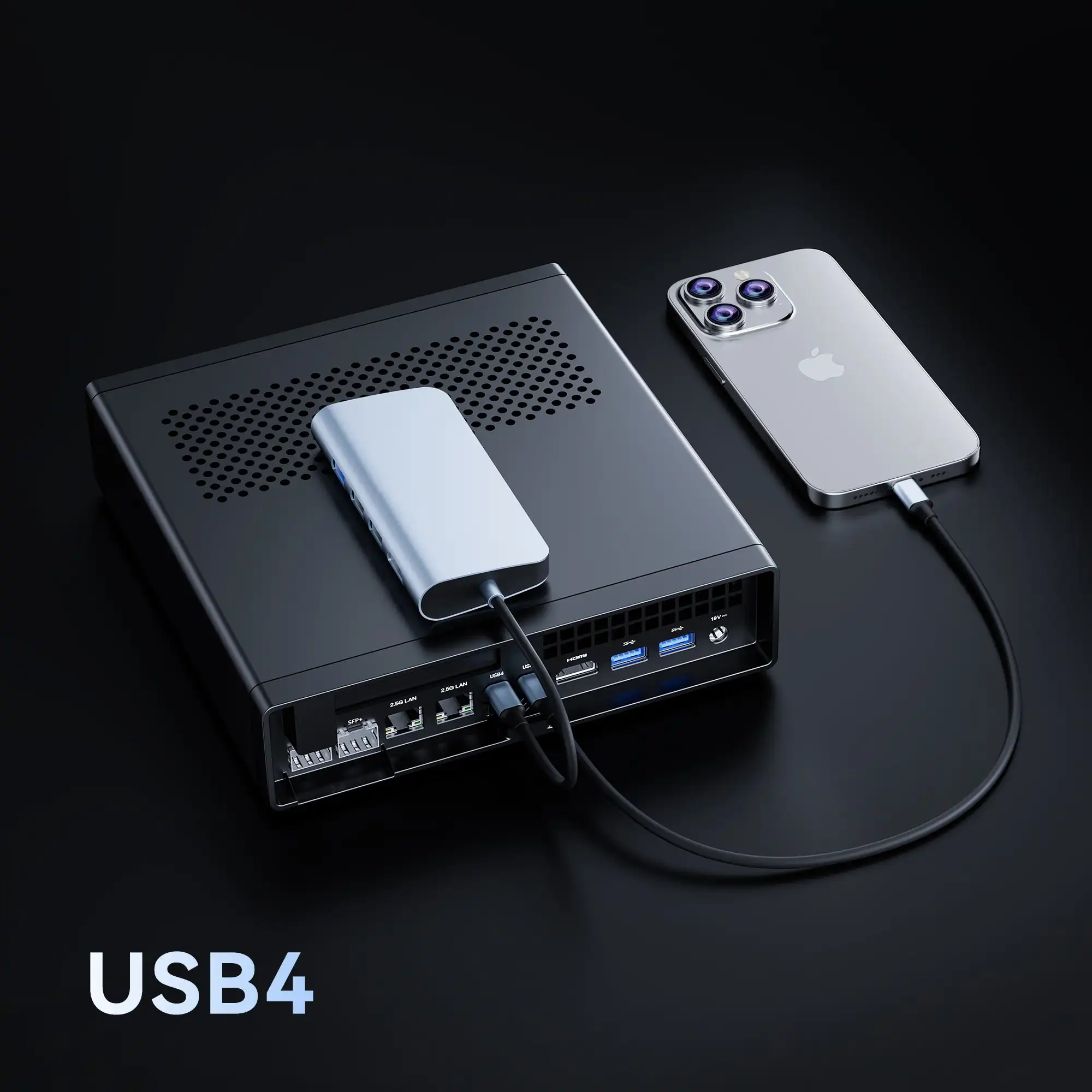

USB4 ports x2 (Alt PD)
HDMI x1
3.5mm combo jack x1
1 x MS-01
1 x Power adapter
1 x Power cable
1 x U.2 conversion plate
1 x Mounting screw
1 x HDMI cable
1 x User's Manual
