- Processor Main Frequency: Depends on CPU
- Use: Multimedia
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: F8
- Processor Brand: Intel
- Processor Model: Core
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
- Operating System: Windows 11/10, linux ,ubuntu etc
- Wireless: AX WiFi6&Bluetooth 5.2
- Product Size: 202*130*37mm
- Color: Black
- Memory Type: 2*DDR4 SO-DIMM slots
- Storage Type: 2*M.2 2280 SSD

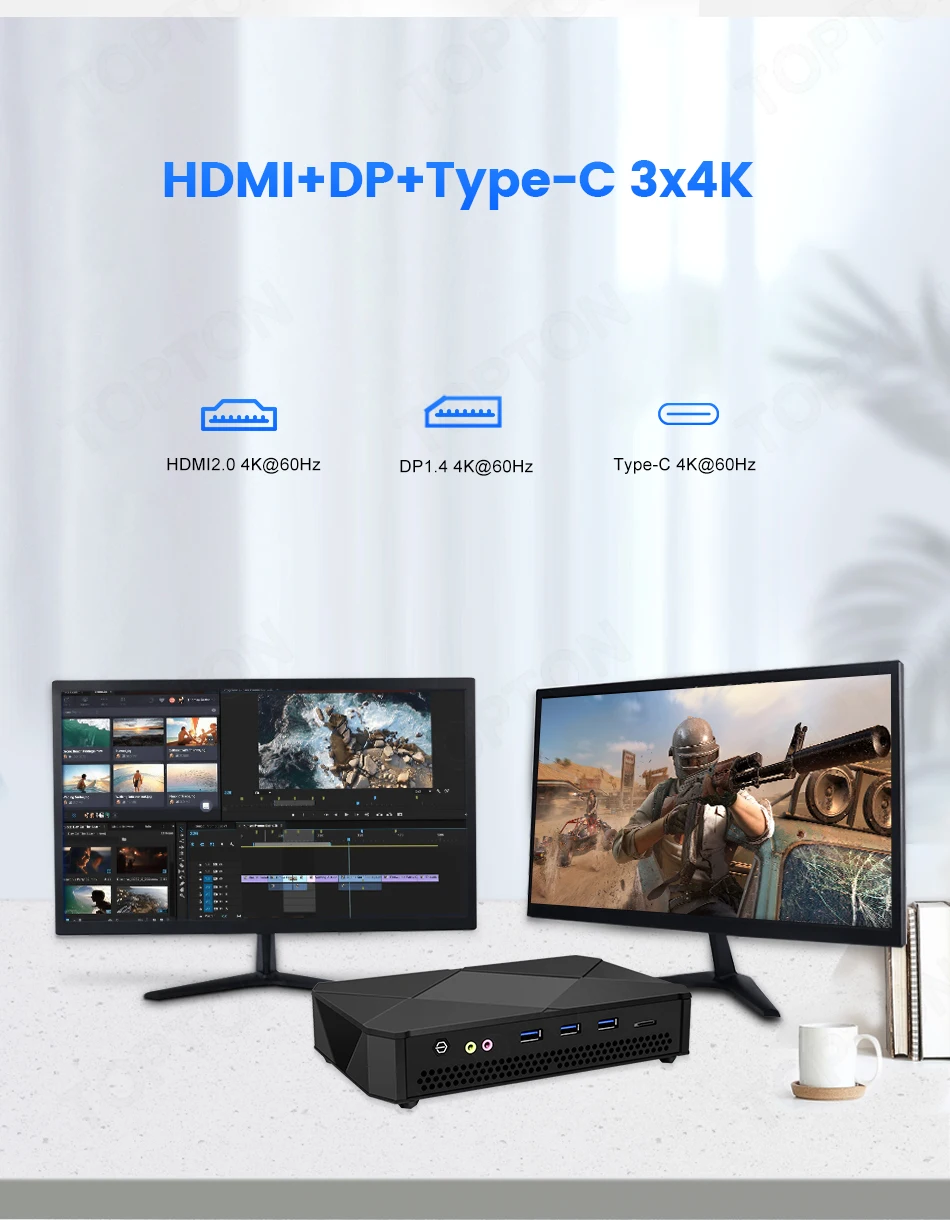

- Display ports: 1*HDMI, 1*DP, 1*Type-C
- USB Ports: 3*USB3.0, 4*USB2.0
Processors parameter for referance only
|
Processors |
Cores & Threads |
Cache |
Base Frequency |
Max Turbo Frequency |
Graphics |
|
Ryzen 5 5625U |
6 cores, 12 threads |
16M |
2.30 GHz |
4.30 GHz |
AMD Radeon Graphics 7 Core 1800MHz |
|
Ryzen 7 5800H |
8 cores, 16 threads |
16M |
3.20 GHz |
4.40 GHz |
AMD Radeon Graphics 8 Core 2000MHz |
|
Ryzen 9 5900H/5900HX |
8 cores, 16 threads |
16M |
3.10 GHz |
4.60 GHz |
AMD Radeon Graphics 8 Core 2100MHz |
|
Core i9-11900H |
8 cores, 16 threads |
24M |
2.50 GHz |
4.90 GHz |
Intel UHD Graphics 350MHz-1450MHz |

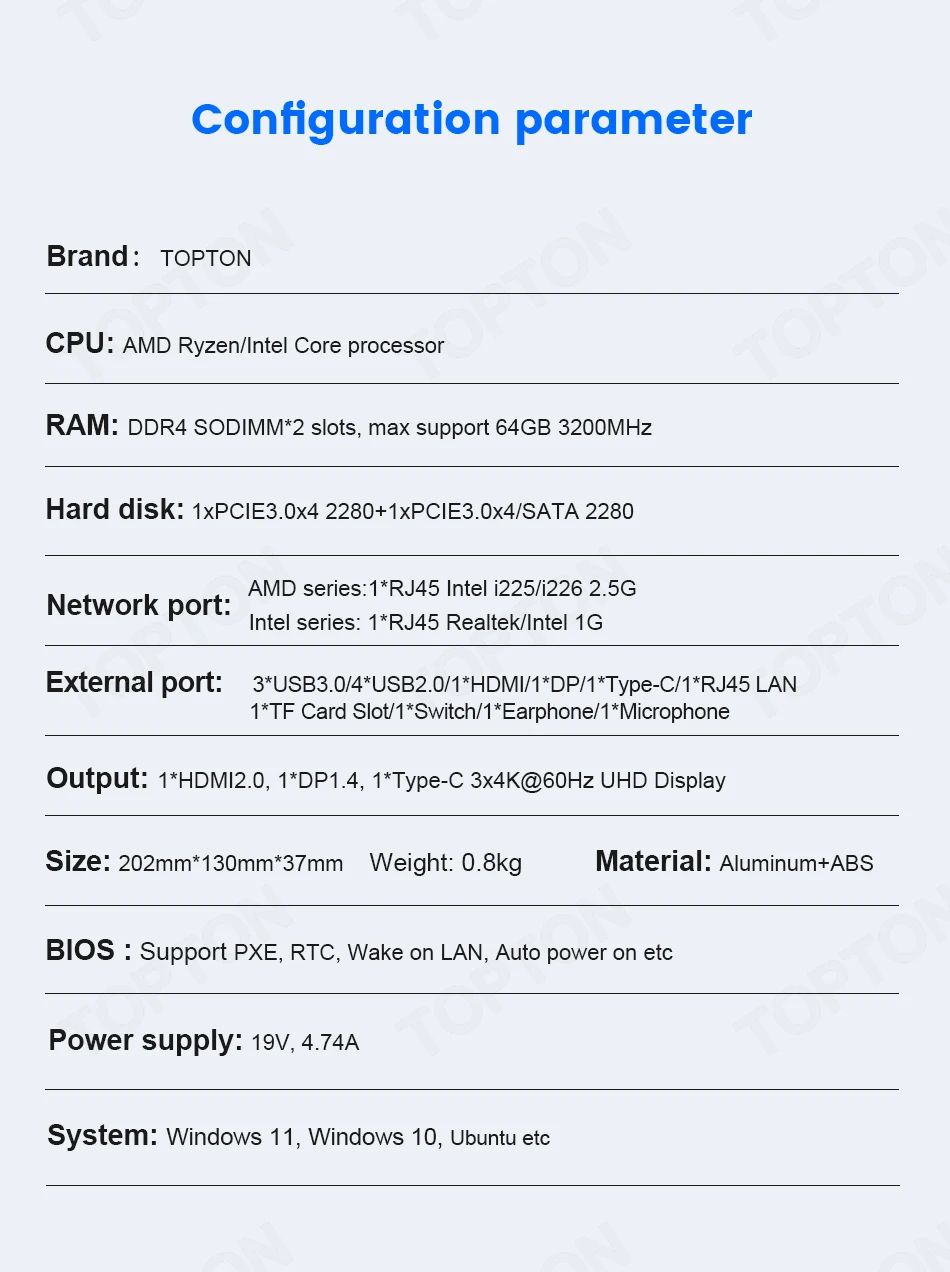

Dimension:202mm(L)x130mm(W)x37mm(H)
CPU: Intel Core i9-11900H/Ryzen 9 5900H/5900HX/Ryzen 7 5800H/Ryzen 5 5625U
GPU:Intel UHD Graphics/AMD Radeon Graphics

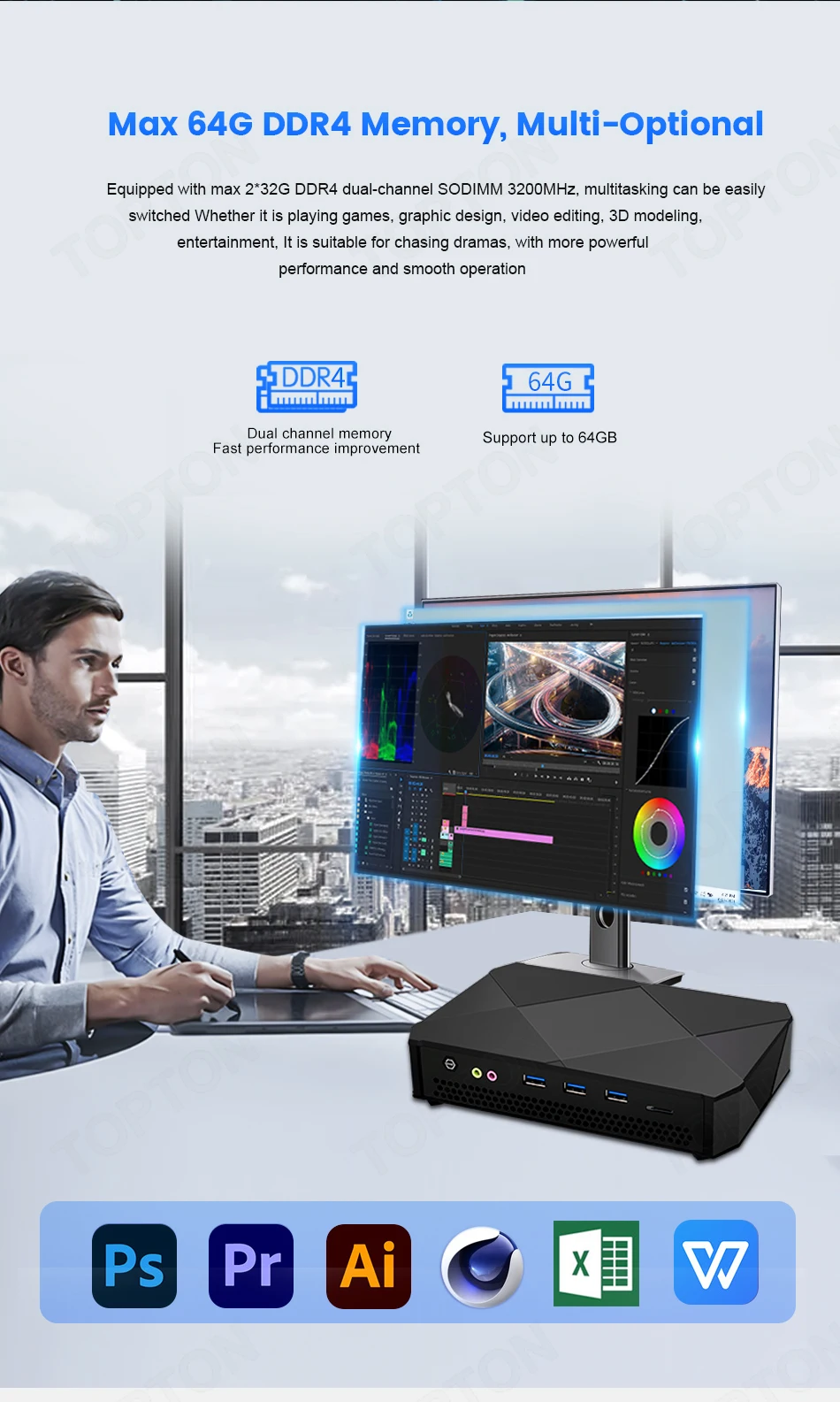

Ram: 2 x SO-DIMM DDR4 slots, max 64GB 3200MHz
SSD: Support 2xM.2 2280 NVME/PCIE3.0x4
WiFi: Dual band AX WiFi6 with Bluethooth5.2(except barebone bundle)

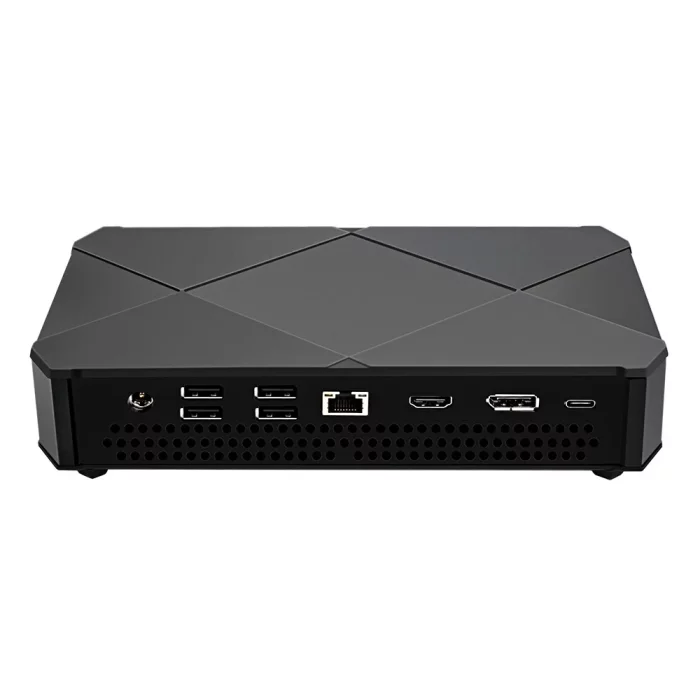

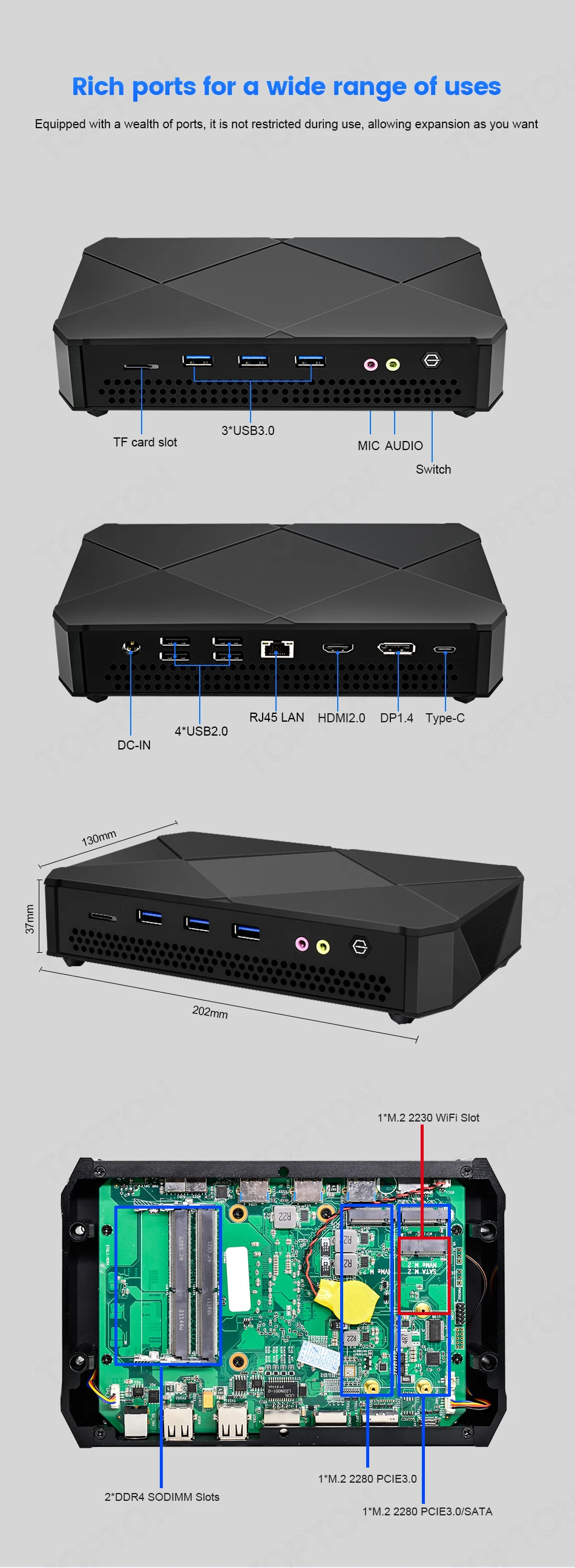

I/O: 1 x Switch, 3 x USB 3.0, 4 x USB 2.0, 1 x HDMI, 1 x DP, 1 x Type-C, 1 x RJ45 LAN, 1 x TF card slot, 1 x MIC, 1 x SPK, 1 x DC-IN
OS: Windows 11 / Windows 10
Power: 19V/4.74A( we ship EU/US/UK/AU power plug base on buyer’s address )

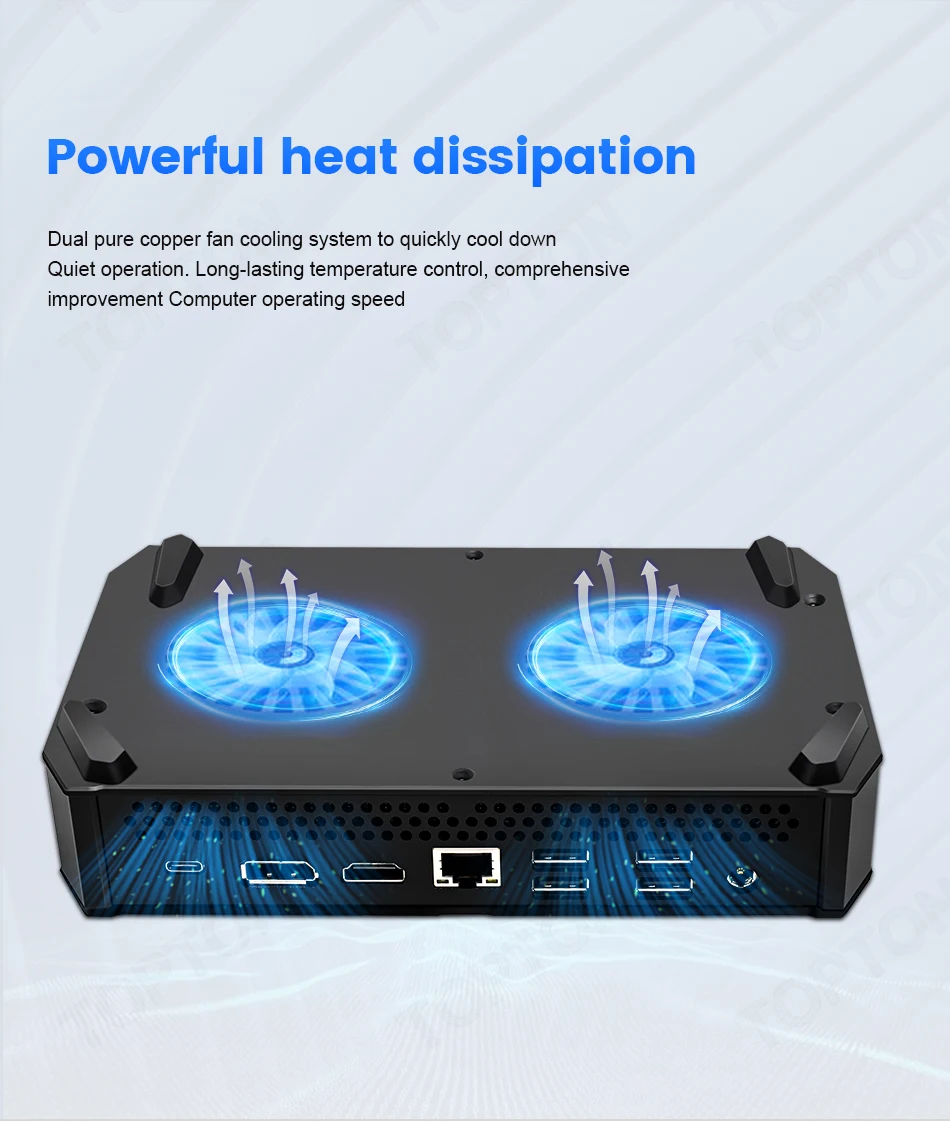

Heat-sink: 2 x silent turbo Fan
