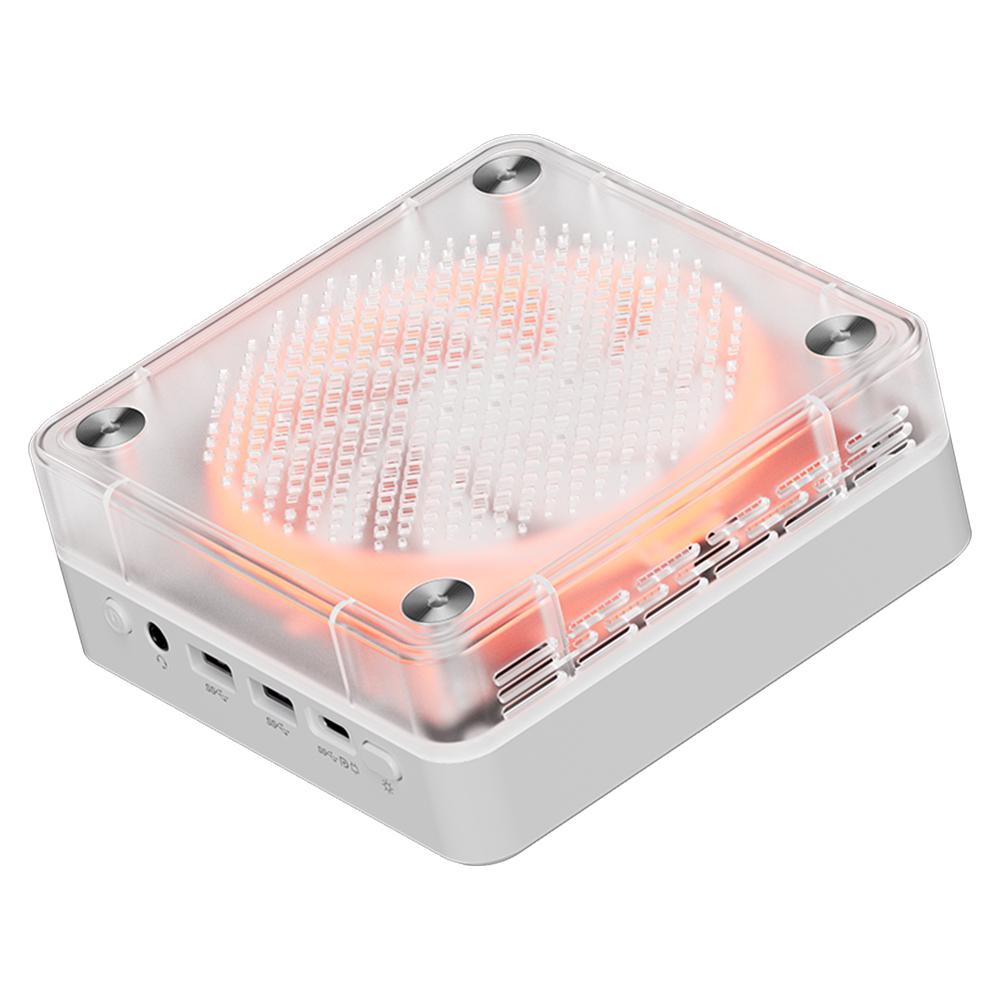

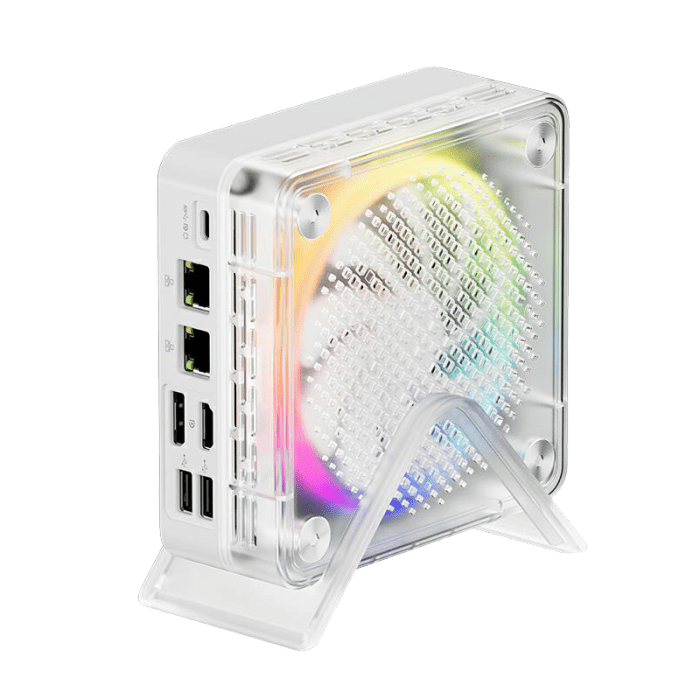

TOPTON Ice Soul Series Mini PC AMD Ryzen 7 7735HS 16GB DDR5 256GB NVMe
Processor parameter for referance only
| Processors | Cores & Threads | Cache | Base Frequency | Max Turbo Frequency | TDP | Graphics |
| Ryzen 7 7840HS | 8 cores, 16 threads | 16M | 3.8GHz | 5.1GHz | 35-54W | AMD Radeon 780M 12 Core 2700MHz |
| Ryzen 7 7735HS | 8 cores, 16 threads | 16M | 3.20 GHz | 4.75 GHz | 35-54W | AMD Radeon 680M 12 Core 2200MHz |
| Ryzen 5 6600H | 6 cores, 12 threads | 16M | 3.30 GHz | 4.50 GHz | 45W | AMD Radeon 660M 6 Core 1900MHz |
Dimension:130mm(L)x130mm(W)x54mm(H)
Ram: 2 x SO-DIMM DDR5 slots, support 4800/5200/5600MHz
SSD: Support M.2 NVME/PCIE4.0/PCIE3.0x4
HDD: Support 2.5 inch 7mm SATA3.0 HDD/SSD
WiFi: 802.11AX WiFi6 with Bluethooth5.2
RJ45 LAN: 1 x 2.5G, 1 x 1G
Front I/O: 2 x USB 3.2(10Gbps), 1 x Type-C USB 4.0 thunderbolt 3(40Gbps, support eGPU, data&video), 1 x Audio, 1 x Switch
Rear I/O: 2 x USB 2.0, 1 x HDMI2.0b, 1 x DP1.4, 2 x RJ45 LAN, 1 x Type-C Power
OS: Windows 11 / Windows 10 etc
Power: PD 100W
Function: TPM2.0/SenseMI Technology/DirectX®12/Wake on lan/ PXE/Auto power on
