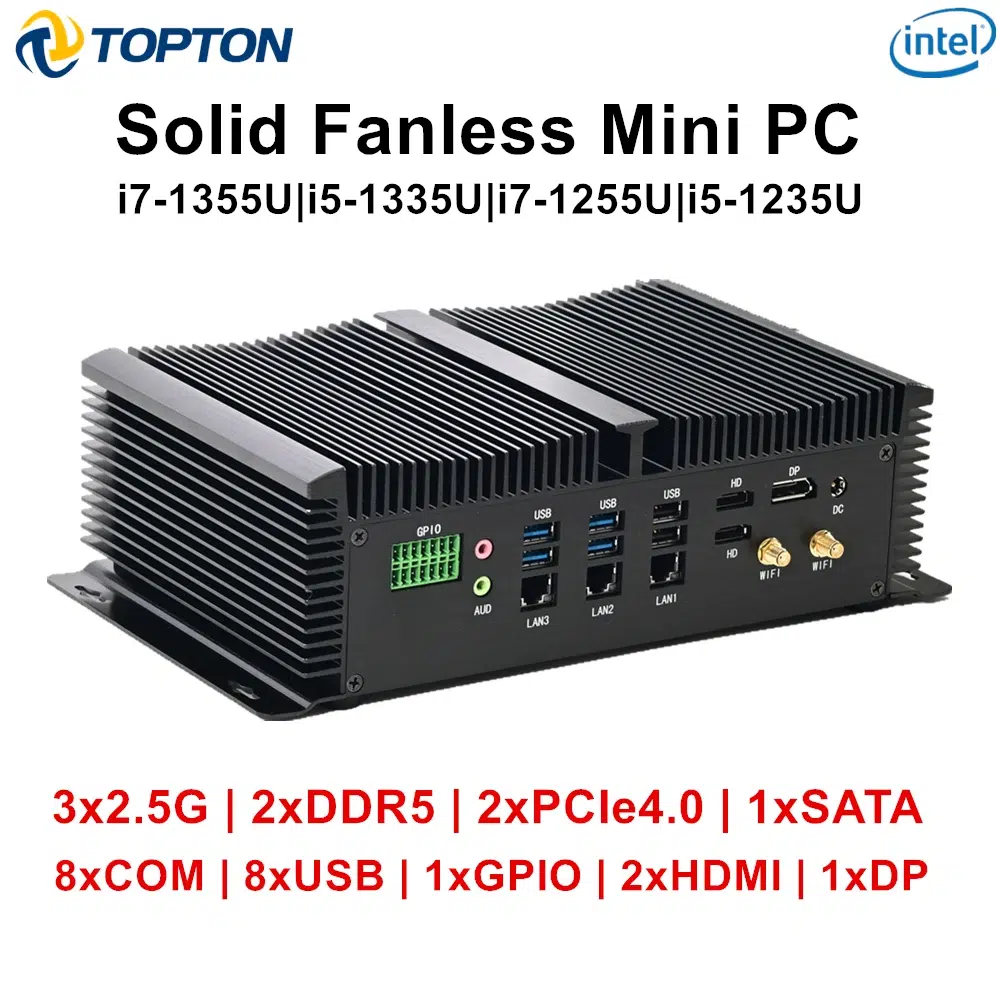

Name: Solid Fanless Mini PC Intel i7 1355U i5 1335U 3xi226-V 2.5G 2xDDR5 2xPCIe4.0 1xSATA 8xCOM GPIO Firewall NAS Industrial Computer
SKU: 3256808373376716
Availability: InStock

Solid Fanless Mini PC Intel i7 1355U i5 1335U 3xi226-V 2.5G 2xDDR5 2xPCIe4.0 1xSATA 8xCOM GPIO Firewall NAS Industrial Computer

Description

Hign-concerned Chemical: None
Processor Main Frequency: Depends on CPU
Use: Commercial
Memory Capacity: ≥ 4GB
Hard Drive Capacity: 1TB
Model Number: G15
Processor Brand: Intel
Processor Model: Core
Type: Mini Desktop
Graphics Card Type: Integrated Card
Brand Name: Topton
Origin: Mainland China
Certification: CE,FCC,RoHS
Type: MINI PC

Processor parameter for referance only

Processors	Cores & Threads	L3 Cache	Max Turbo Frequency	TDP	Graphics
Core i5-1235U	10 cores, 12 threads	12M	4.40 GHz	15W	Intel Iris Xe Graphics max 1.20GHz
Core i7-1255U	10 cores, 12 threads	12M	4.70 GHz	15W	Intel Iris Xe Graphics max 1.25GHz
Core i5-1335U	10 cores, 12 threads	12M	4.60 GHz	15W	Intel Iris Xe Graphics max 1.25GHz
Core i7-1355U	10 cores, 12 threads	12M	5.00 GHz	15W	Intel Iris Xe Graphics max 1.30GHz

Product Highlight

-3xIntel i226-V 2.5G RJ45 LANs, 4xUSB3.0, 4xUSB2.0, 1xGPIO, 1xPS2, 8xCOM RS232(COM1, COM2 can be changed to RS422/RS485 in BIOS).

-2xDDR5 SODIMM non-ecc ram slots, support 4800MHz.

-Support 3 storages: 2xM.2 2280 NVMe/PCIe4.0x4 SSD+1×2.5inch SATA SSD/HDD.

-1xM.2 2230 slot, supports WiFi6&Bluetooth connection(optional to buy).

-1xSIM card slot, 1xMini PCIE slot, supports 4G LTE connection(optional to buy).
-2xHDMI2.0, 1xDP1.4, support 3x4K@60Hz UHD video display.

-Support uEFI BIOS, TPM2.0, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

-Solid aluminum case size 280x156x77mm with longer tooth-fins gets much more efficient heat dissipation. Fanless design is noiseless and dustproof.

Package List

1xMini PC

1xPower Adapter(EU/US/UK/AU plug based on buyer's country)

1xPower Cable

1xSATA Cable
