- Hign-concerned Chemical: None
- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X4H
- Processor Brand: Intel
- Processor Model: Alder Lake-N
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
Product Highlight

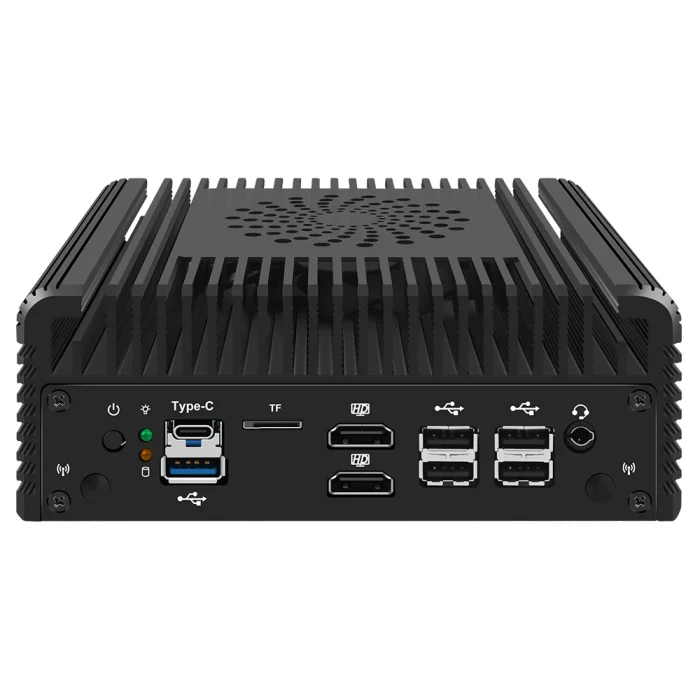

-2xIntel 82599ES 10G SFP+, 2xIntel i226-V 2.5G RJ45 LANs, 1xType-C 3.2 Gen1, 1xUSB3.2 Gen1, 4xUSB2.0.
-1xDDR5 SODIMM ram slot, support 4800MHz.
-Support 2 storage: 1xM.2 NVMe(PCIe3.0x1, on the back of motherboard) 2280 SSD+1×2.5-inch SATA3.0 SSD/HDD.
-1xM.2 E key 2230 slot, support WiFi6&Bluetooth connection.
-1xTF card slot support storage and partial system boot.
-2xHDMI2.0 support 2x4K@60Hz UHD video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Innovation: It is flexible to change between fanless system and fan system. A fan built in solid aluminum case with high tooth fins and copper block gets much better heat dissipation to improve CPU performance significantly, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
Please buy bundle with RAM and SSD if you are not good at PC assembly, because M.2 NVMe slot is located on the back of motherboard.
All bundles on sale DO NOT include WiFi(antennas), AC WiFi(antennas) cost US $10, AX WiFi6(antennas) cost US $30, Internal 8010 cooling FAN cost US $9. If you need, pay at this link.
Welcome to click the picture of VESA Bracket to order together if you need:
