Lead time:
| Quantity(pieces) | 1 – 20 | 21 – 300 | >300 |
| Lead time (days) | 15 | 25 | To be negotiated |
Product Description

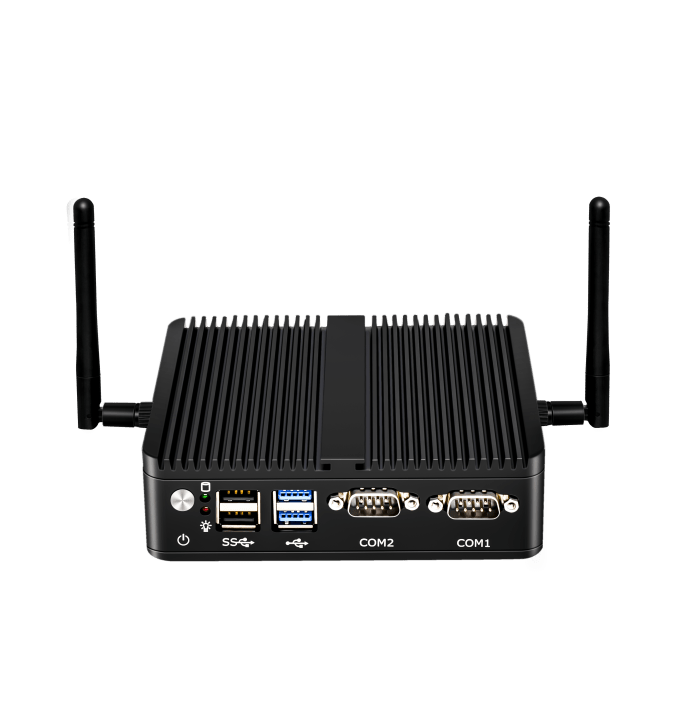

New J4125 Fanless 2.5G Router Nano Mini PC 4 Intel i226-V 2.5GbE Nics pfSense Firewall Router PC OPNsense VMware ESXi Proxmox
Notice
1. In-tel i226-V is a new network card, pfSense etc system maybe have not released compatible driver to match yet, suggest to install newest version of following systems: OPNsense 22.x, pfSense Plus, OpenWrt, ESXi, Proxmox, PVE, CentOS etc. Please make clear before buying,
1. In-tel i226-V is a new network card, pfSense etc system maybe have not released compatible driver to match yet, suggest to install newest version of following systems: OPNsense 22.x, pfSense Plus, OpenWrt, ESXi, Proxmox, PVE, CentOS etc. Please make clear before buying,
DO NOT open dispute because of system issue.
2. The cost above is based on J4125 barebone system (No RAM No storage No wifi option), different configuration cost differenttoo, welcome inquiry from us.
Processor parameter for referance only
Gemini Lake Ce-leron J4125 4 cores 4 threads 2.0GHz up to 2.7GHz 4MB cache TDP 10W In-tel UHD Graphics 600, AES-NI supported.
Gemini Lake Ce-leron J4125 4 cores 4 threads 2.0GHz up to 2.7GHz 4MB cache TDP 10W In-tel UHD Graphics 600, AES-NI supported.
Product Highlight
-4xIn-tel i226-V 2.5G RJ45 LANs, 2xUSB3.0.
-2xDDR4 SODIMM non-ecc ram slots, max support 16GB 2400MHz.
-Support two storage: 1xmSATA SSD+1×2.5”SATA SSD/HDD.
-4xIn-tel i226-V 2.5G RJ45 LANs, 2xUSB3.0.
-2xDDR4 SODIMM non-ecc ram slots, max support 16GB 2400MHz.
-Support two storage: 1xmSATA SSD+1×2.5”SATA SSD/HDD.
-Support 1xHD-MI+1xVGA dual display output synchronously and asynchronously.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours.
-Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).
