- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X4B/X4B-COM
- Processor Brand: Intel
- Processor Model: N100
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
|
Processors |
Cores & Threads |
Cache |
Max Turbo Frequency |
TDP |
Graphics |
|
Intel N100 |
4 cores, 4 threads |
6M |
3.40 GHz |
6W |
Intel UHD Graphics 750MHz 24EUS |
|
Intel Core i3-N305 |
8 cores, 8 threads |
6M |
3.80 GHz |
15W |
Intel UHD Graphics 1250MHz 32EUS |
Product Highlight

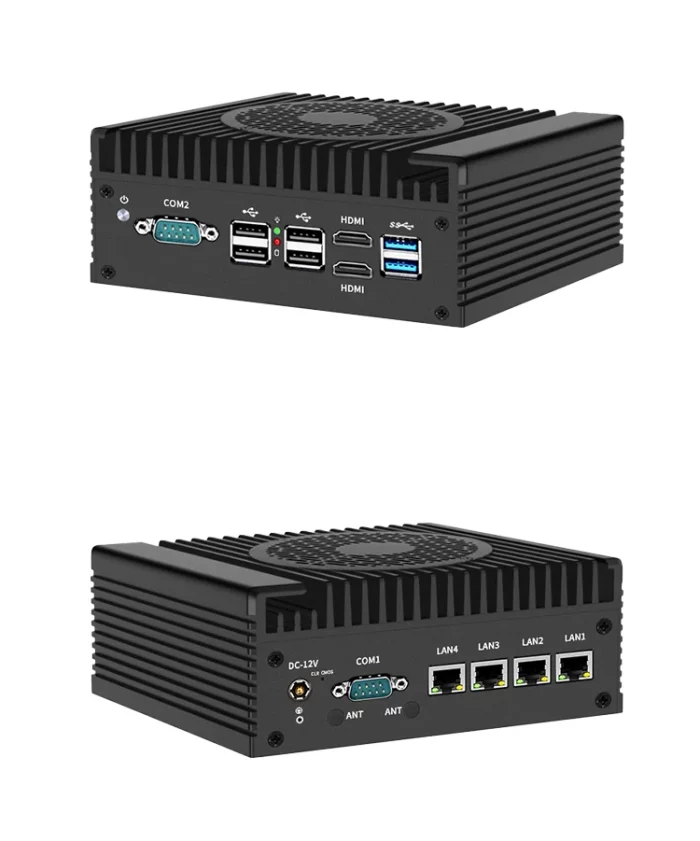

-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 4xUSB2.0, 1xCOM1 RS232, 1xCOM2 RS232/RS485, 2xHDMI2.0.
-1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x2 2280 SSD+1×2.5''SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xM.2 2230 WiFi slot, 1xMPCIE slot, support WiFi/4G/3G(3 choose 1) connection.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Innovation:
It is flexible to change between fanless system and fan system for i3-N305 model. A fan built in solid aluminum case with longer cooling fins and copper pad gets much better heat dissipation to improve CPU performance significantly, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.
-It is fanless system for N100 model. Solid aluminum shell with longer fins as heat-sink, copper pad for faster heat conduction, gets much more efficient cooling performance. It is silent totally.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Notice
Intel i226-V is a new network card, suggest to install newest version of following systems with supportable kernel: pfSense-CE 2.7, OPNsense 23.x, pfSense Plus, OpenWrt, ESXi, Proxmox, CentOS etc. Please make clear before buying.
Welcome to click the picture of VESA Bracket to order together if you need:
