Fanless Mini PC Router i7 10810U 6xIntel i225-V No Ram No Storage

Fanless Mini PC Router i7 10810U 6xIntel i225-V No Ram No Storage

Processor parameter for referance:

Intel Core i3-8140U, 4M Cache, 2 cores 4 threads, 2.10GHz up to 3.90GHz;

Intel Core i5-8260U, 6M Cache, 4 cores 8 threads, 1.60GHz up to 3.90GHz;

Intel Core i5-10210U, 6M Cache, 4 cores 8 threads, 1.60GHz up to 4.20GHz;

Intel Core i7-10810U, 8M Cache, 6 cores 12 threads, 1.10GHz up to 4.90GHz.

Highlight

– 6*Intel i225-V B3 2.5GbE RJ45 LANs and 2*RS232 COM ports;

– 1*SO-DIMM DDR4 ram slot support max 32GB;

– 1*mSATA3.0 SSD+1*2.5”SATA3.0 SSD/HDD installation supported;

– 1*SIM card slot onboard, 3G/4G/WiFi optional;

–  Full Aluminum Alloy high quality solid-built shell with three-sided Y-section ice thorns, excellent cooling performance, Exquisite production craft on outside design, slim design 209*150*57MM;

-Support Windows, pfSense, OPNsense, ESXi, Proxmox, OpenWrt, CentOS etc;

-Support AES-NI, Auto power on(move jumper), Watchdog, RTC, Wake-on-LAN, PXE, Reset etc functions;

– Low consumption save much energy and eco-friendly.

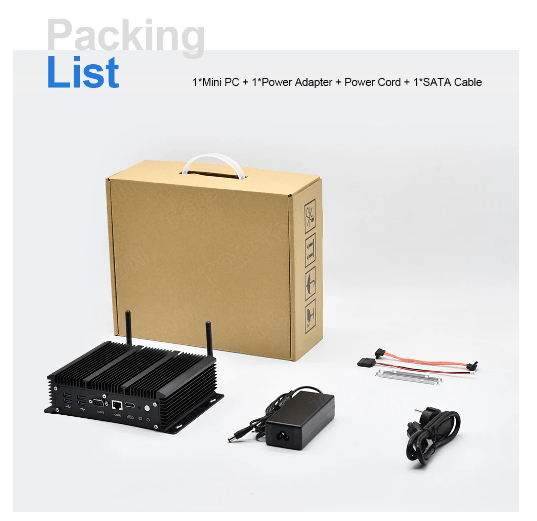

Package List

1xMini PC,

1xPower Adapter,

1xPower Cord,( we ship correct power plug EU/US/UK/AU base on buyer’s address )
1xScrews Bag,

2xWi-Fi antennas
