- Processor Main Frequency: Depends on Processor
- Use: Multimedia
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: V7
- Processor Brand: Intel
- Processor Model: Core
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
|
Processors |
Cores & Threads |
Cache |
Base Frequency |
Max Turbo Frequency |
Graphics |
|
Core i7-1255U |
10 cores, 12 threads |
12M |
1.70 GHz |
4.70 GHz |
Intel Iris Xe Graphics up to 1.25GHz |
|
Core i7-10510U |
4 cores, 8 threads |
8M |
1.80 GHz |
4.90 GHz |
Intel UHD Graphics up to 1.15GHz |
|
Core i7-10710U |
6 cores, 12 threads |
12M |
1.10 GHz |
4.70 GHz |
Intel UHD Graphics up to 1.15GHz |
|
Core i7-1165G7 |
4 cores, 8 threads |
12M |
2.80 GHz |
4.70 GHz |
Intel Iris Xe Graphics up to 1.30GHz |

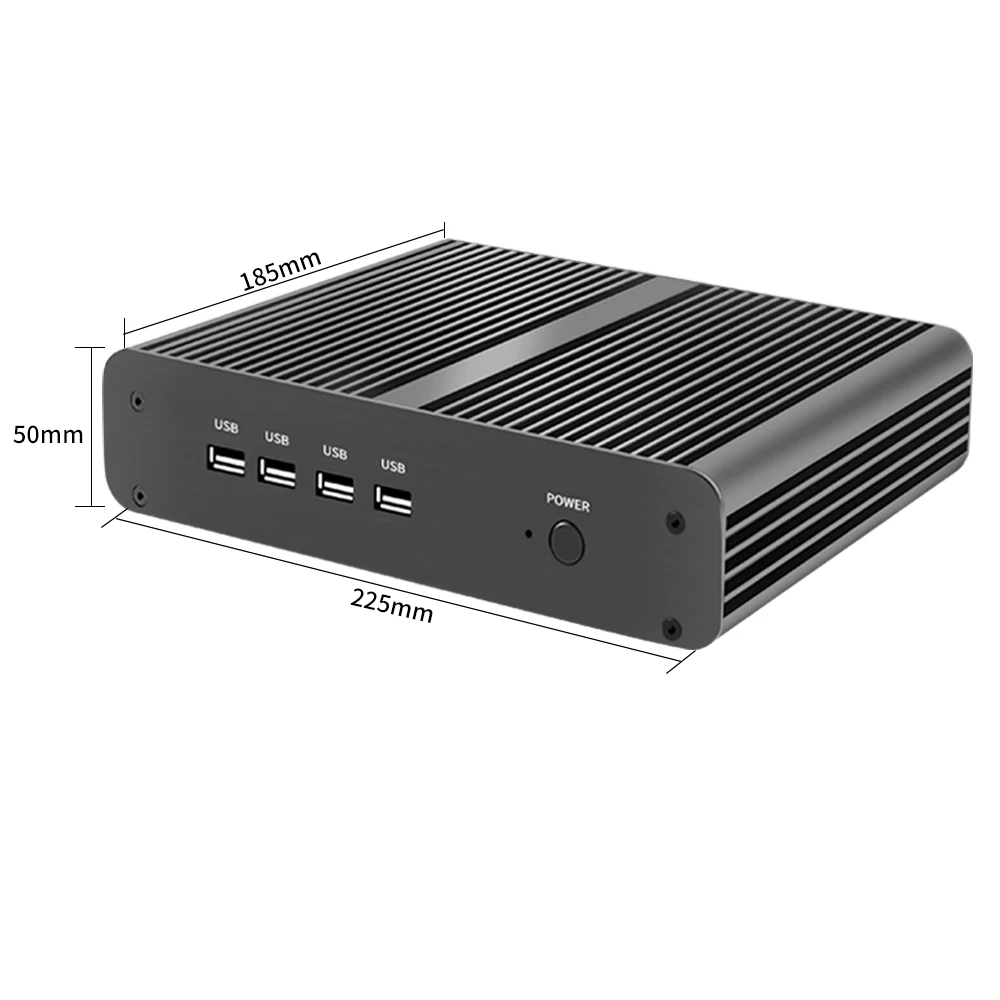

Dimension:225mm(L)x185mm(W)x50mm(H)
CPU: Intel Core i7-1255U/i7-1165G7/i7-10710U/i7-10510U
GPU:Intel Iris Xe/UHD Graphics
Ram: 2 x SO-DIMM DDR4 slots, max 64GB 3200MHz
SSD: Support 1xM.2 2280 NVME/PCIE3.0x4 SSD+1xMSATA SSD+1×2.5 inch SATA SSD/HDD
WiFi: Dual band AC WiFi5 with Bluethooth4.2
I/O: 1 x Switch, 4 x USB 3.0, 4 x USB 2.0, 1 x HDMI, 1 x DP, 1 x RJ45 LAN, 1 x MIC, 1 x SPK, 1 x DC-IN
OS: Windows 11 pre-installed(except bareabone no storage bundle)
Power: 19V/4.74A

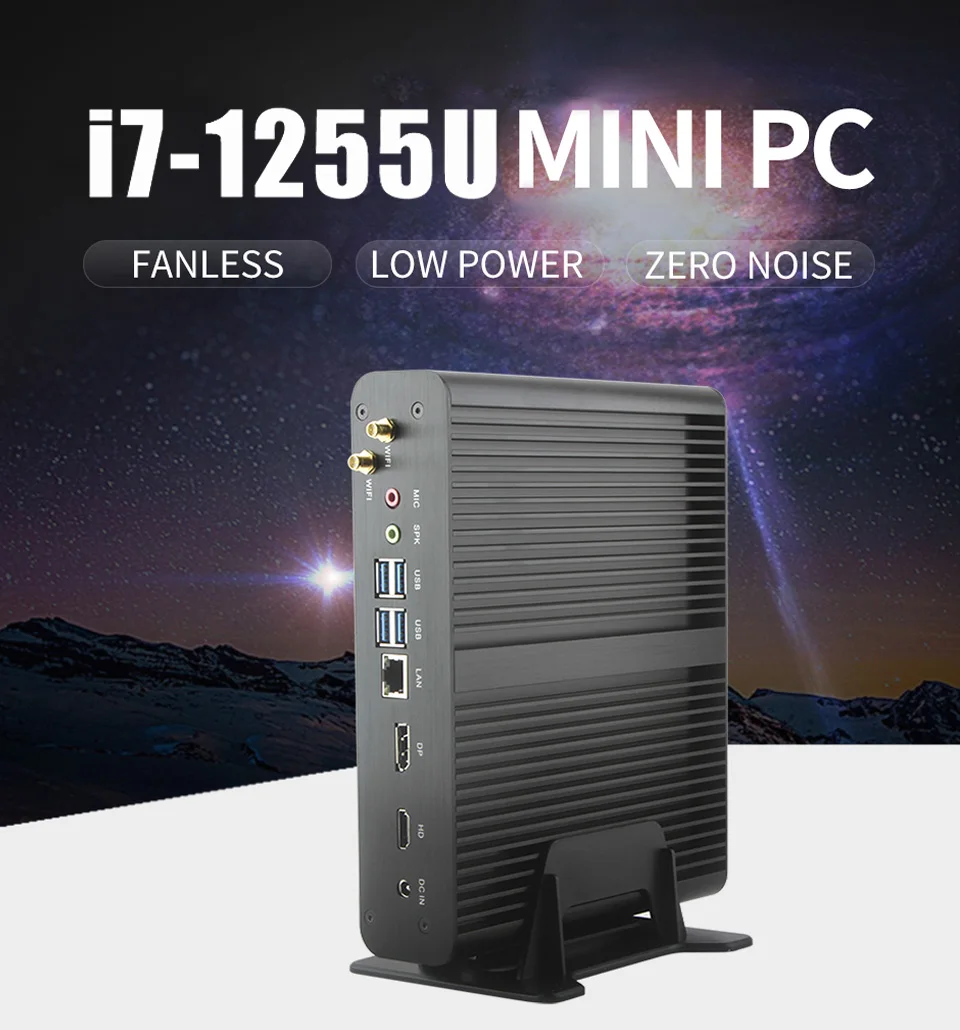

Heat-sink: fanless full aluminum case
What's in the package
Welcome to click the picture of VESA Bracket to order together if you need:
