Name: Fanless AMD Mini PC FU02 Ryzen 7 7730U 5800U Gaming Mini Computer Windows 11 Dual LAN Firewall Router 2*HDMI2.0 NVMe DDR4 WiFi6
SKU: 1005005427732742
Availability: InStock

Fanless AMD Mini PC FU02 Ryzen 7 7730U 5800U Gaming Mini Computer Windows 11 Dual LAN Firewall Router 2*HDMI2.0 NVMe DDR4 WiFi6

SKU: 1005005427732742 Category: Gaming Mini PC

Processor Main Frequency: Depends on CPU
Use: Multimedia
Memory Capacity: ≥ 4GB
Hard Drive Capacity: 1TB
Model Number: FU02
Processor Brand: AMD
Processor Model: Ryzen
Type: Mini Desktop
Graphics Card Type: Integrated Card
Brand Name: Topton
Origin: Mainland China
Certification: CE,FCC,RoHS
Type: MINI PC
Operating System: Windows 11/10, Linux, Ubuntu etc
Wireless: 2.4G/5G AX WiFi6+Bluetooth 5.2
Graphic Cards: Radeon Vega Graphics
Product Size: 180*126.5*62.5mm
Case Material: Aluminum Alloy
Storage type: 1*M.2 2280+1*2.5'' SATA3.0
Memory type: 2*DDR4 non-ecc SODIMM
Video port: 2*HDMI2.0
USB Ports: 3*USB3.1, 2*USB2.0

Processor parameter for referance only

Model: FU02
Dimension:180mm(L)x126.5mm(W)x62.5mm(H)
CPU: AMD Ryzen series
GPU: AMD Radeon Graphics
Ram: 2 x So-DIMM DDR4 slots, support max 64GB 3200MHz
SSD: Support M.2 2280 NVME/PCIE3.0x4
HDD: Support 2.5inch 7mm HDD/SSD
WiFi: AX WiFi6 with Bluethooth5.2(except barebone bundle)
RJ45: 2 x 100/1000M
Front I/O: 1 x USB 3.1, 1 x Mic in/out, 1 x Switch

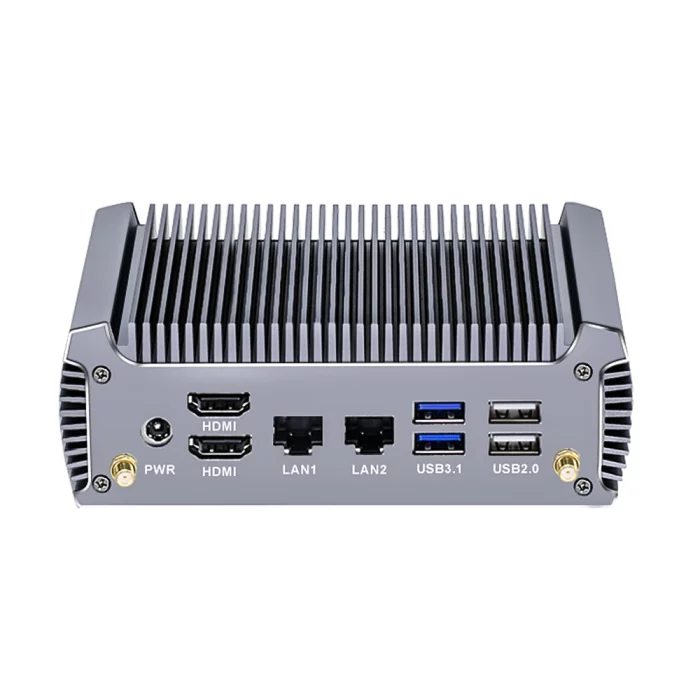

Rear I/O: 2 x USB 3.1, 2 x USB 2.0, 2 x HDMI2.0, 2 x RJ45 LAN, 1 x DC IN
OS: Windows 11 / Windows 10 / Ubuntu etc
Power: 19V 3.42-4.74A

Feature: Fanless design, aluminum shell as heat-sink, totally silent

Function: Auto power on(open model, unable to close)

What's in the package

1xMini PC

1xPower supply

1xPower cable( we ship EU/US/UK/AU power plug base on buyer's address )

1xSATA cable

2xAntennas

Notice

Barebone Mini PC ("No Ram No HD No WiFi" bundle) package DO NOT include WiFi6 module, if you need, please pay extra US $20 at this link. Other bundles include WiFi6 module.

Welcome to click the picture of VESA Bracket to order together if you need:

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

kf-S81ff5e4acb0e4ffe833f8bb943aabd81I-Fanless-AMD-Mini-PC-FU02-Ryzen-7-7730U-5800U-Gaming-Mini-Computer-Windows-11-Dual-LAN

kf-Sb8dfd9b2d3c648e694f1e2ff27f09cc4T-Fanless-AMD-Mini-PC-FU02-Ryzen-7-7730U-5800U-Gaming-Mini-Computer-Windows-11-Dual-LAN

Click to enlarge

Back to products

Color
Bundle	Clear

Add to quote

Compare

Add to wishlist

Description

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Fanless AMD Mini PC FU02 Ryzen 7 7730U 5800U Gaming Mini Computer Windows 11 Dual LAN Firewall Router 2*HDMI2.0 NVMe DDR4 WiFi6”

You must be logged in to post a review.

Shipping & Delivery

Video

Processors	Cores & Threads	Cache	Base Frequency	Max Turbo Frequency	TDP	Graphics
Ryen 7 7730U	8 cores, 16 threads	16M	2.00 GHz	4.50 GHz	15W	AMD Radeon Graphics 8 Core 2000MHz
Ryzen 7 5800U	8 cores, 16 threads	16M	1.90 GHz	4.40 GHz	15W	AMD Radeon Graphics 8 Core 2000MHz
Ryzen 5 5600U	6 cores, 12 threads	16M	2.30 GHz	4.20 GHz	15W	AMD Radeon Graphics 7 Core 1800MHz
Ryzen 5 7530U	6 cores, 12 threads	16M	2.00 GHz	4.50 GHz	15W	AMD Radeon Graphics 7 Core 2000MHz
