Name: 13th 12th Gen Fanless Mini PC USB4.0 i7 1355U i5 1335U i3 1315U Intel 6x i226-V LAN Firewall Appliance Soft Router Proxmox ESXi
SKU: 3256807768172849
Availability: InStock

Description

Hign-concerned Chemical: none
Processor Main Frequency: Depends on CPU
Use: Commercial
Memory Capacity: ≥ 4GB
Hard Drive Capacity: 1TB
Model Number: X6C
Processor Brand: Intel
Processor Model: Core
Type: Mini Desktop
Graphics Card Type: Integrated Card
Brand Name: Topton
Origin: Mainland China
Certification: CE,FCC,RoHS
Type: MINI PC

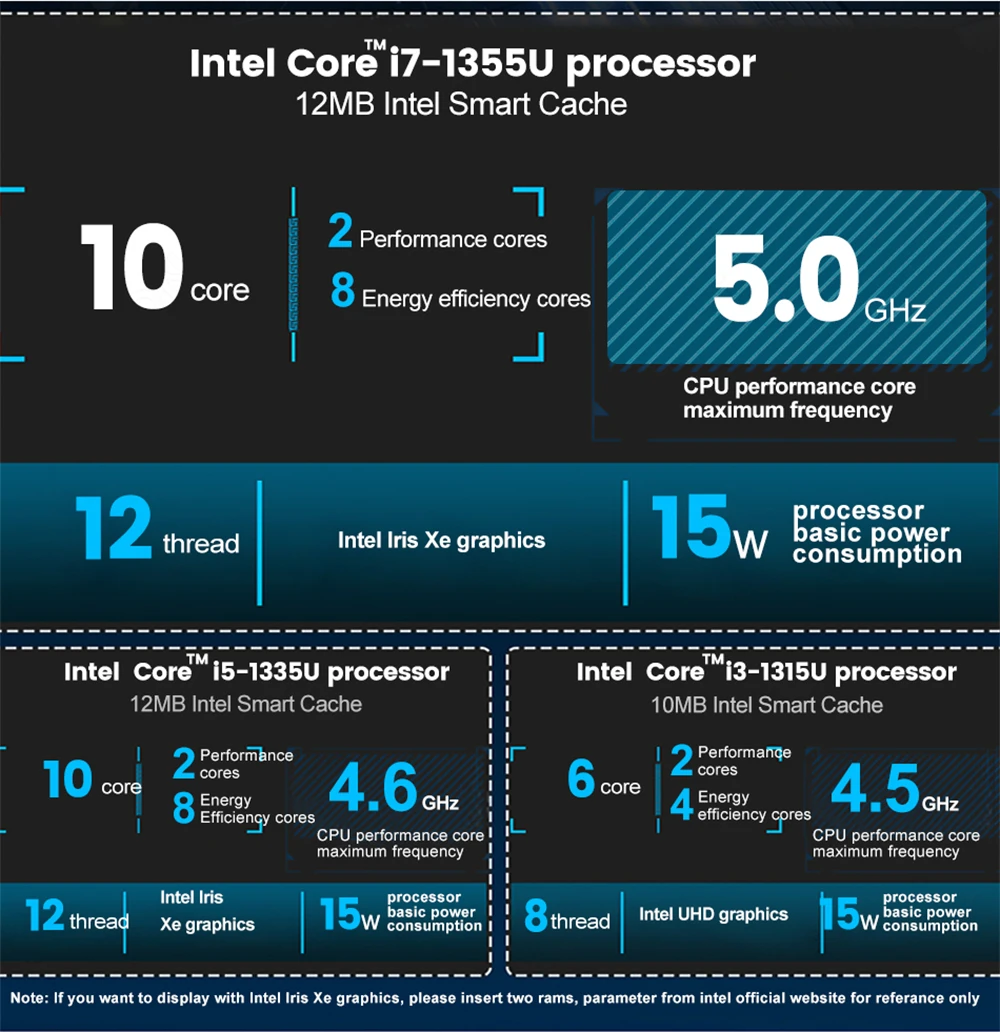

Processor parameter for referance only

Processors	Cores & Threads	L3 Cache	Max Turbo Frequency	TDP	Graphics
Core i3-1215U	6 cores, 8 threads	10M	4.40 GHz	15W	Intel UHD Graphics max 1.10GHz
Core i5-1235U	10 cores, 12 threads	12M	4.40 GHz	15W	Intel Iris Xe Graphics max 1.20GHz
Core i3-1315U	6 cores, 8 threads	10M	4.50 GHz	15W	Intel UHD Graphics max 1.25GHz
Core i5-1335U	10 cores, 12 threads	12M	4.60 GHz	15W	Intel Iris Xe Graphics max 1.25GHz
Core i7-1355U	10 cores, 12 threads	12M	5.00 GHz	15W	Intel Iris Xe Graphics max 1.30GHz

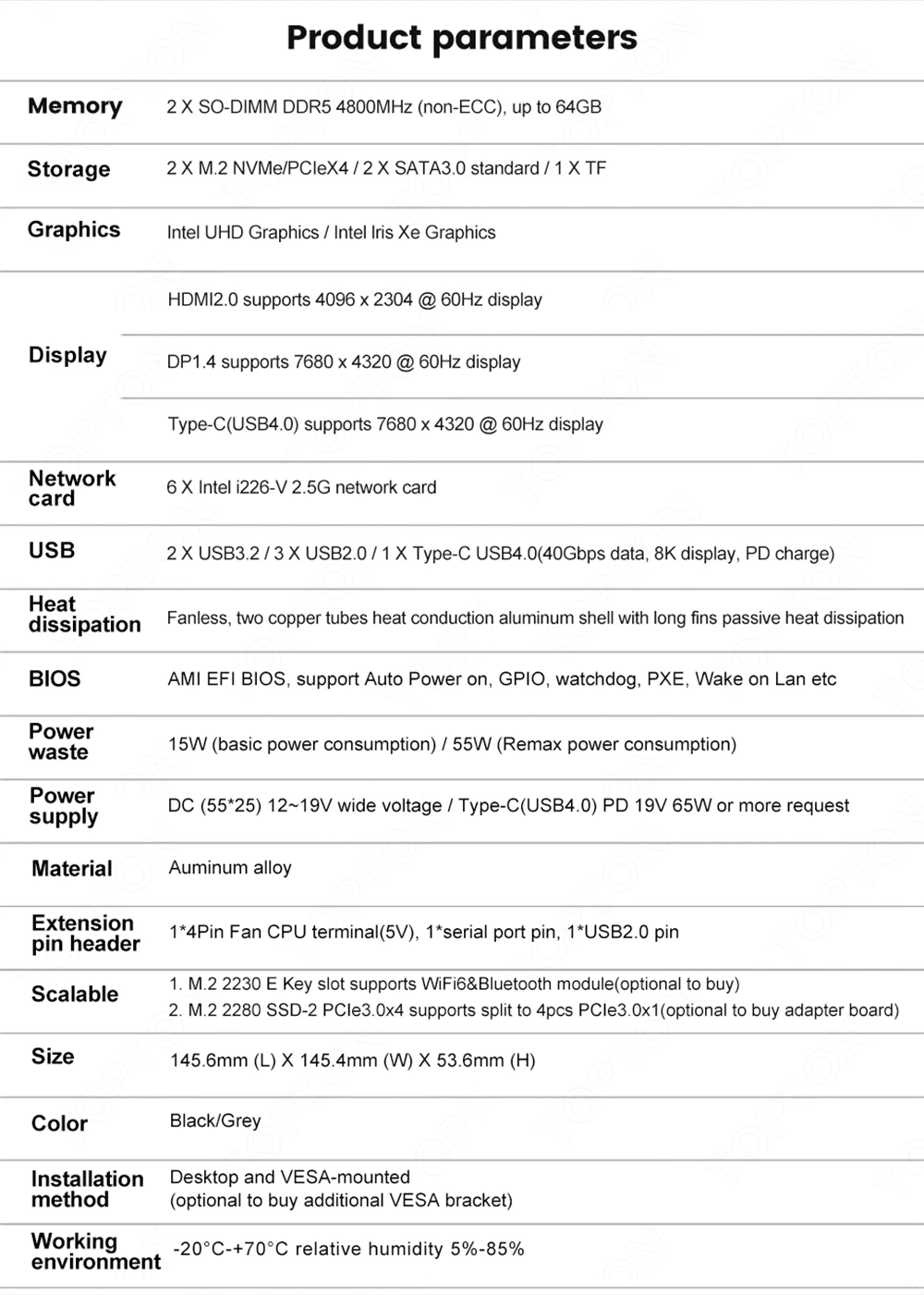

Product Highlight

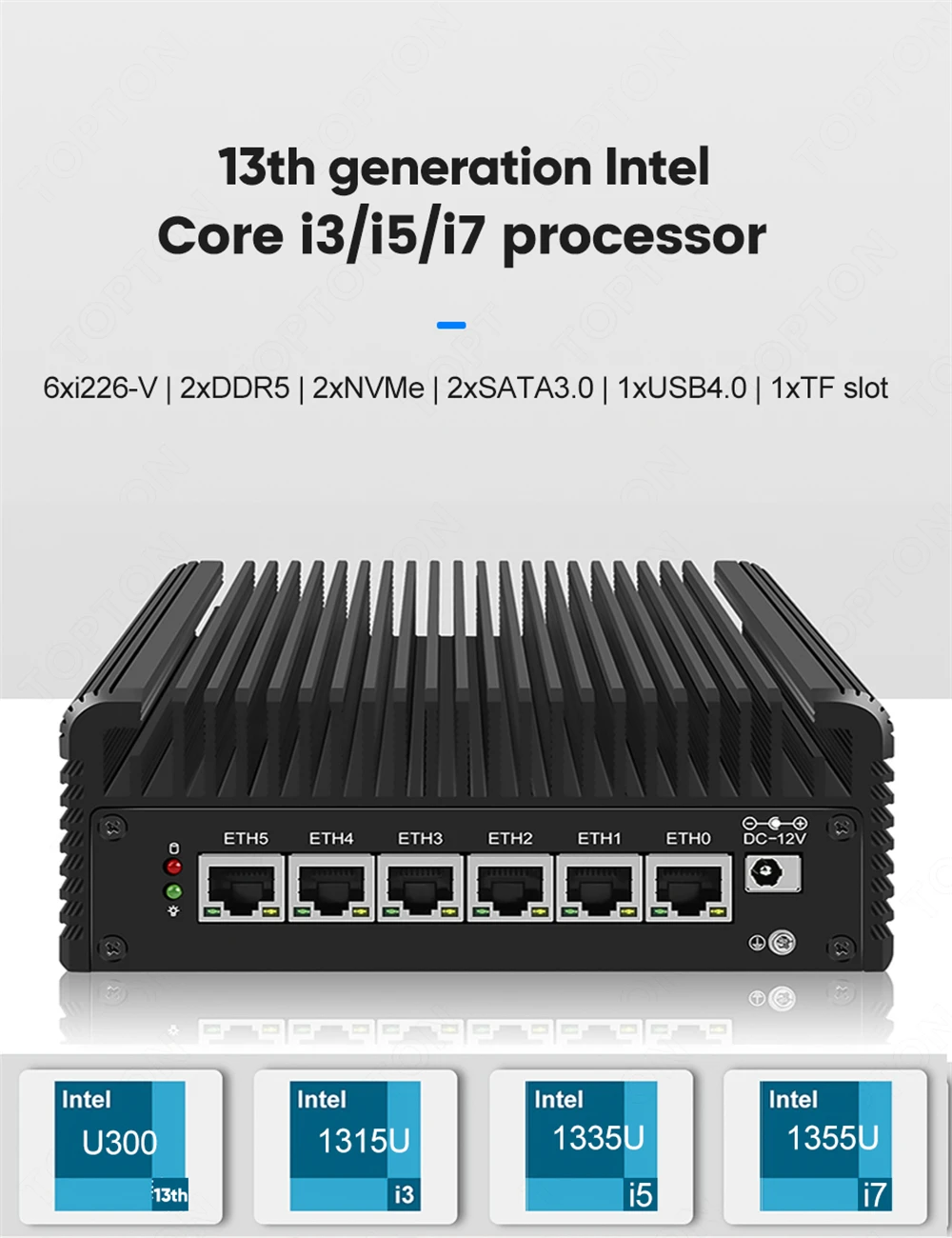

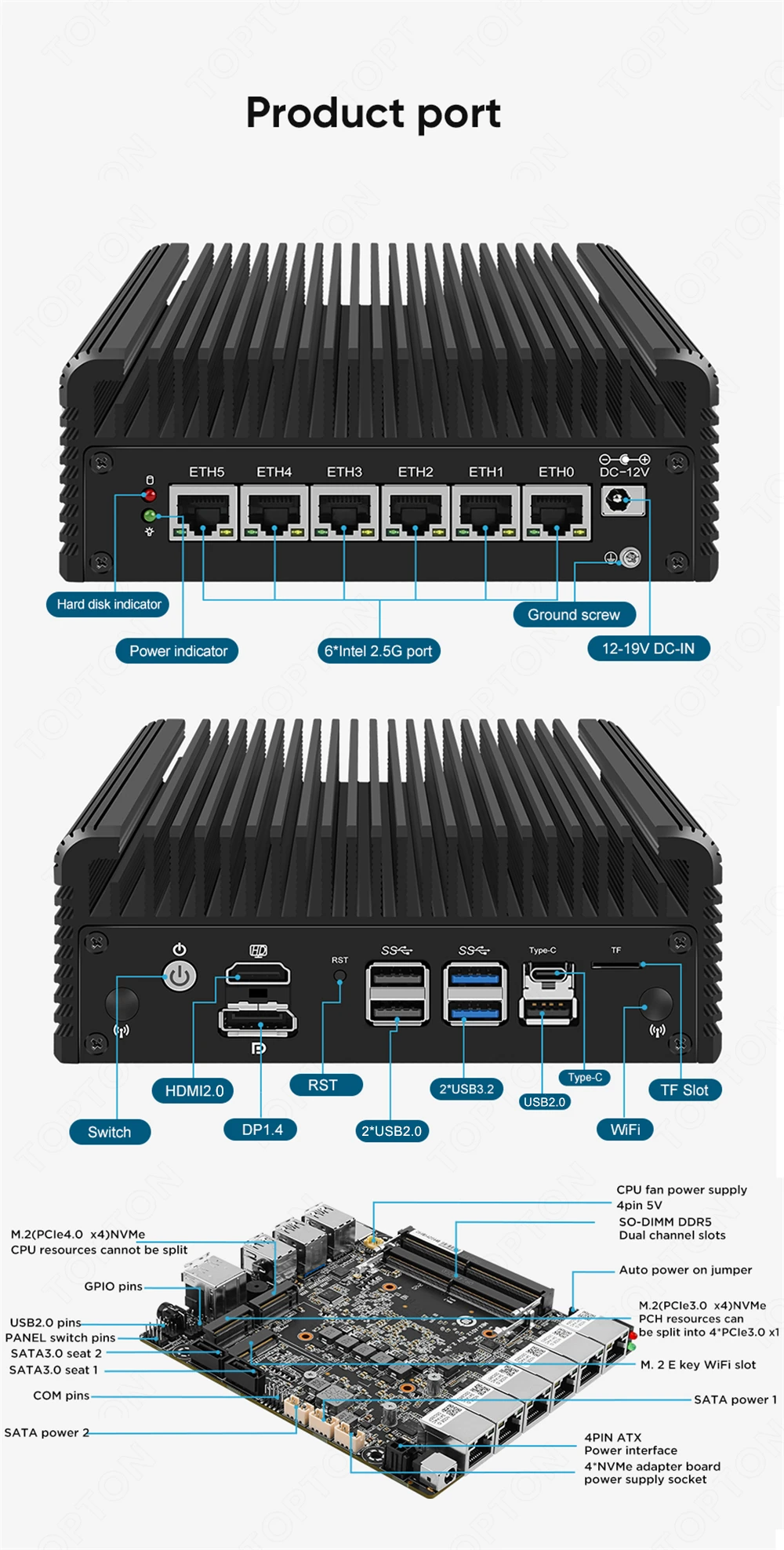

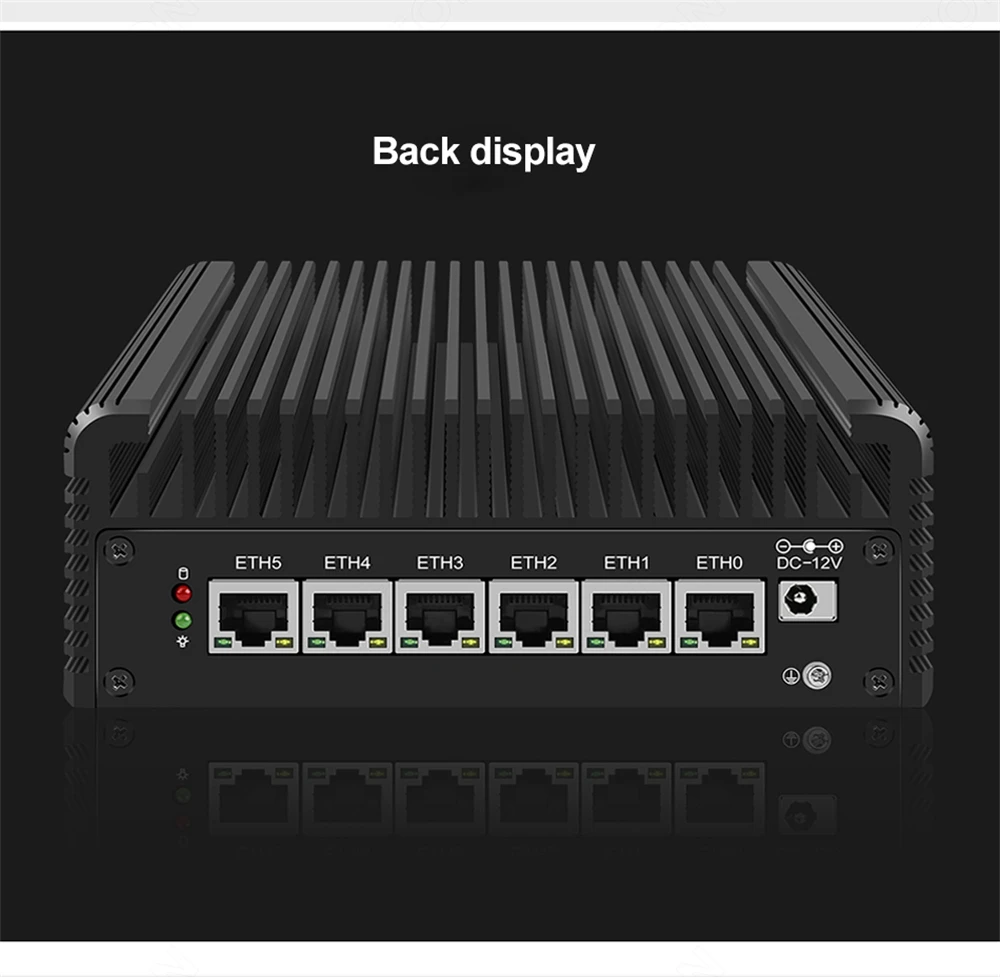

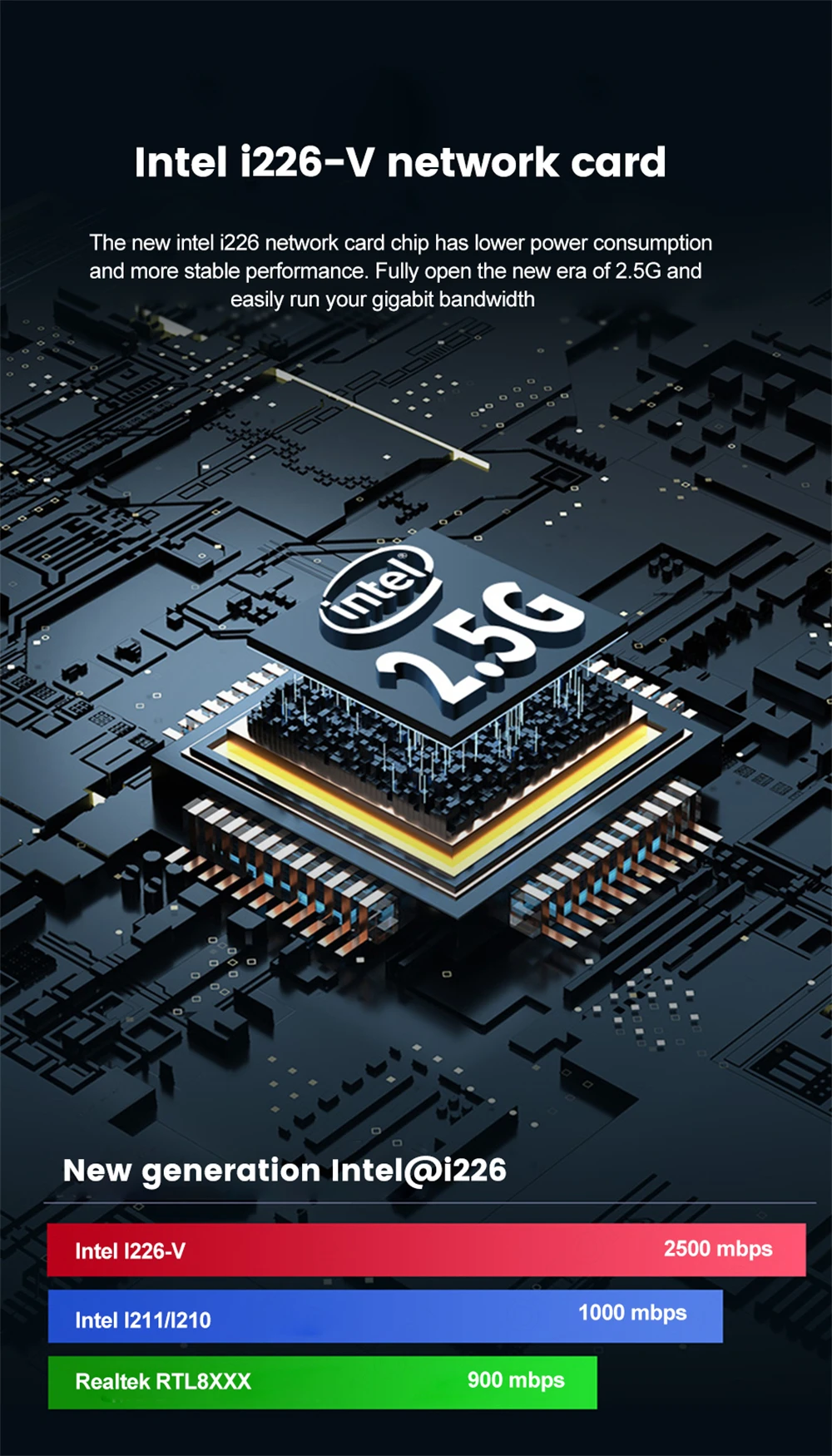

-6xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.2, 3xUSB2.0, 1xType-C USB4.0, 1xTF card slot.

-2xDDR5 SODIMM non-ecc ram slots, support 4800MHz.

-Support 5 storages: 1xM.2 2280 NVMe/PCIe4.0x4 SSD+1xM.2 2280 NVMe/PCIe3.0x4 SSD+2xSATA3.0+1xTF card.

-Type-C USB4.0 supports 40Gbps data, 8K display, PD charge(19V 65W at least).
-1xM.2 2230 slot, supports WiFi6&Bluetooth connection(optional to buy).
-TF card slot supports storage and partial system boot.

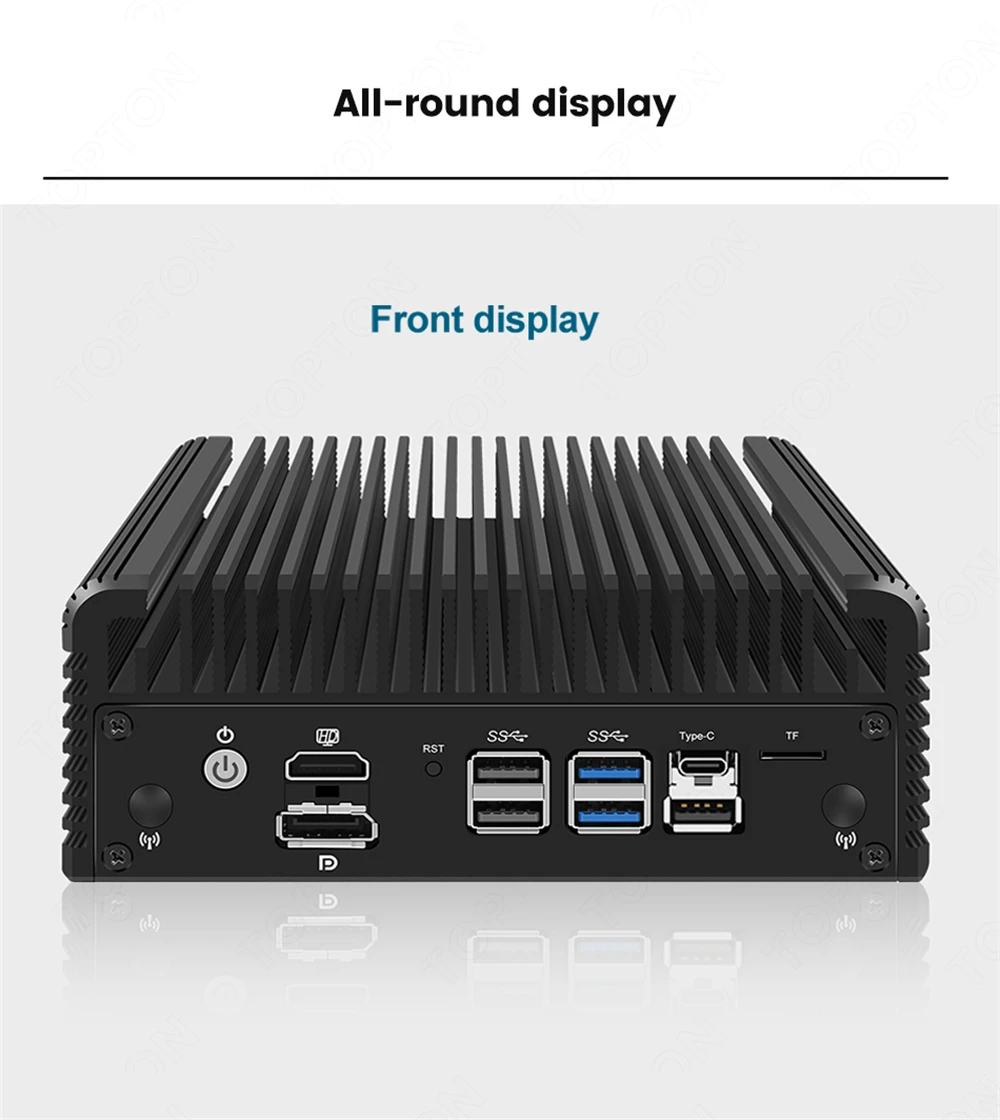

-1xHDMI2.0, 1xDP1.4, 1xType-C, support 3x4K@60Hz UHD video display.

-Support TPM2.0, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

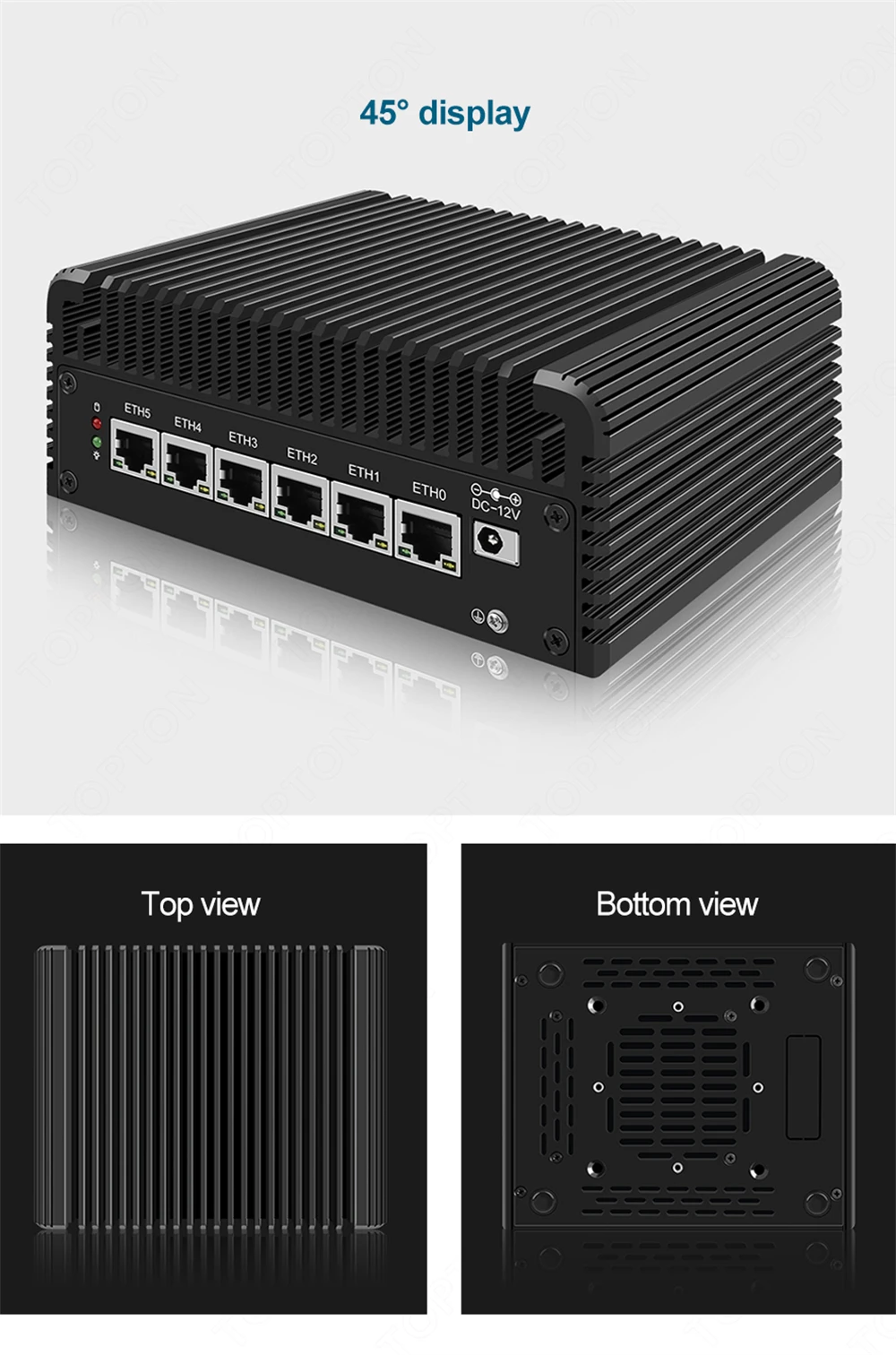

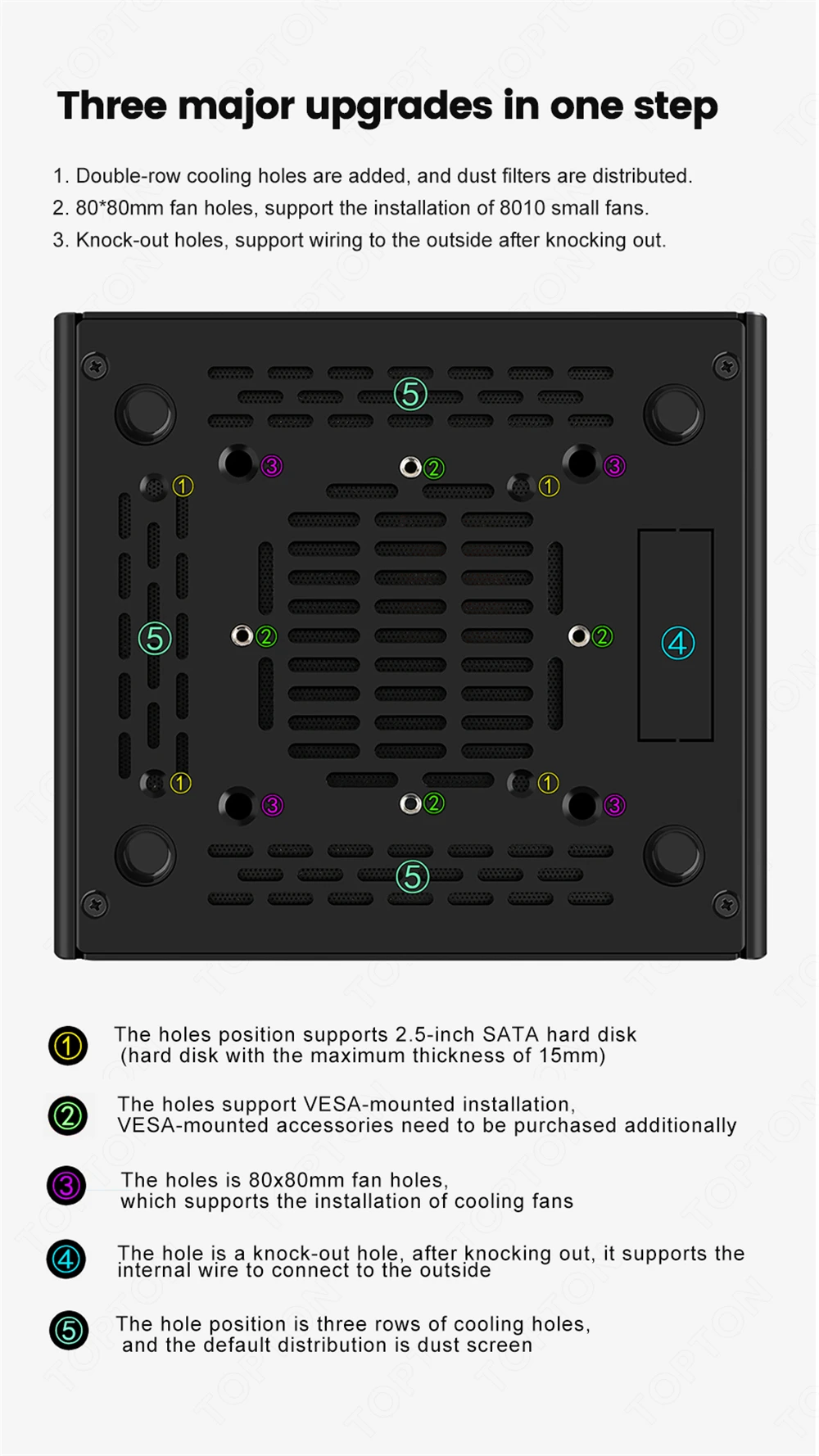

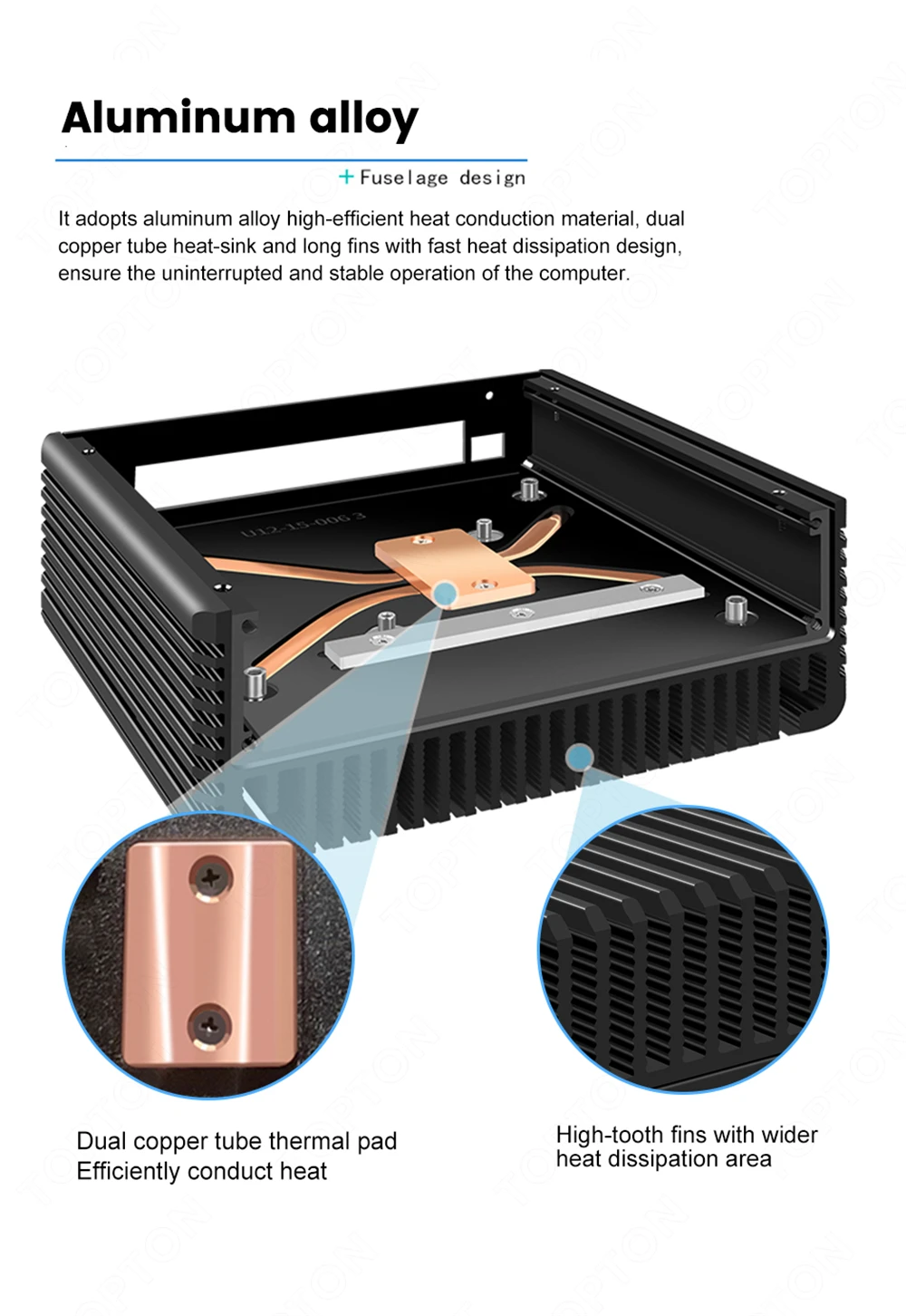

-Innovative fanless design: Solid aluminum case with built-in dual copper tubes and longer tooth-fins gets much more efficient heat dissipation. Fanless design is noiseless and dustproof. A gift 8010 fan can be assembled inside case to achieve better cooling performance if you worry overheat. Fan sound is low.

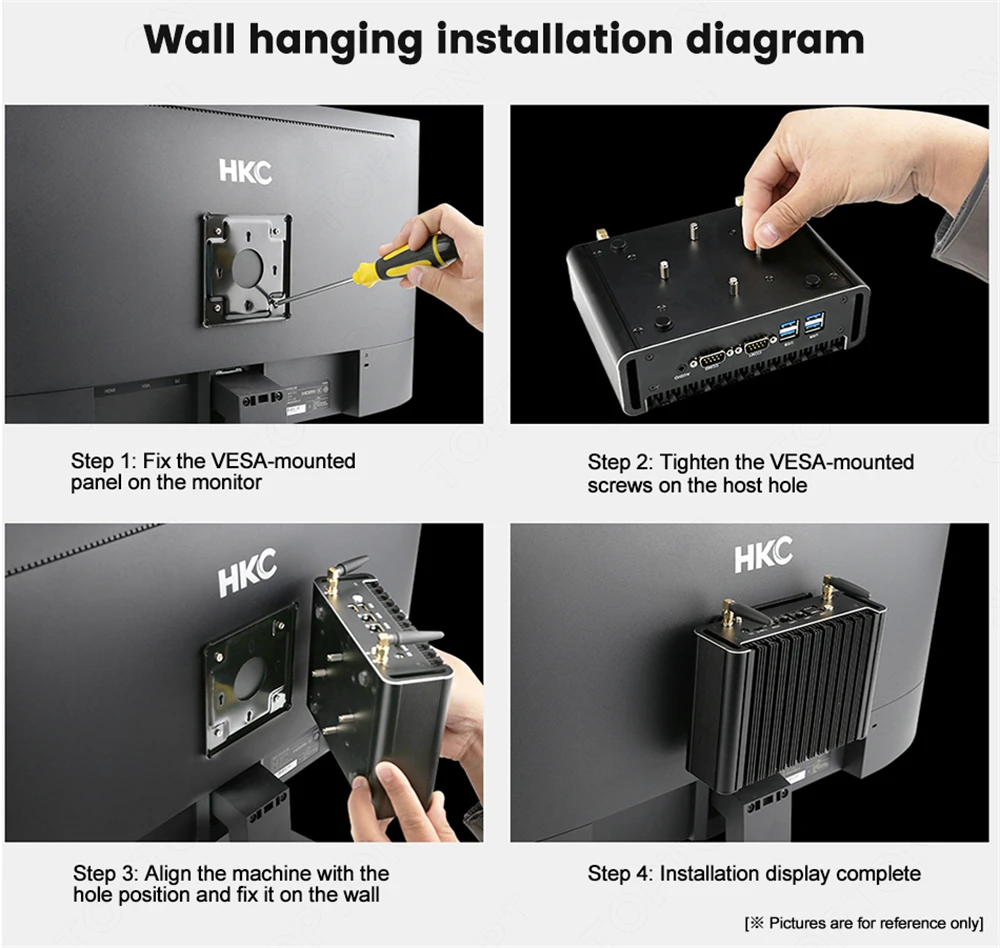

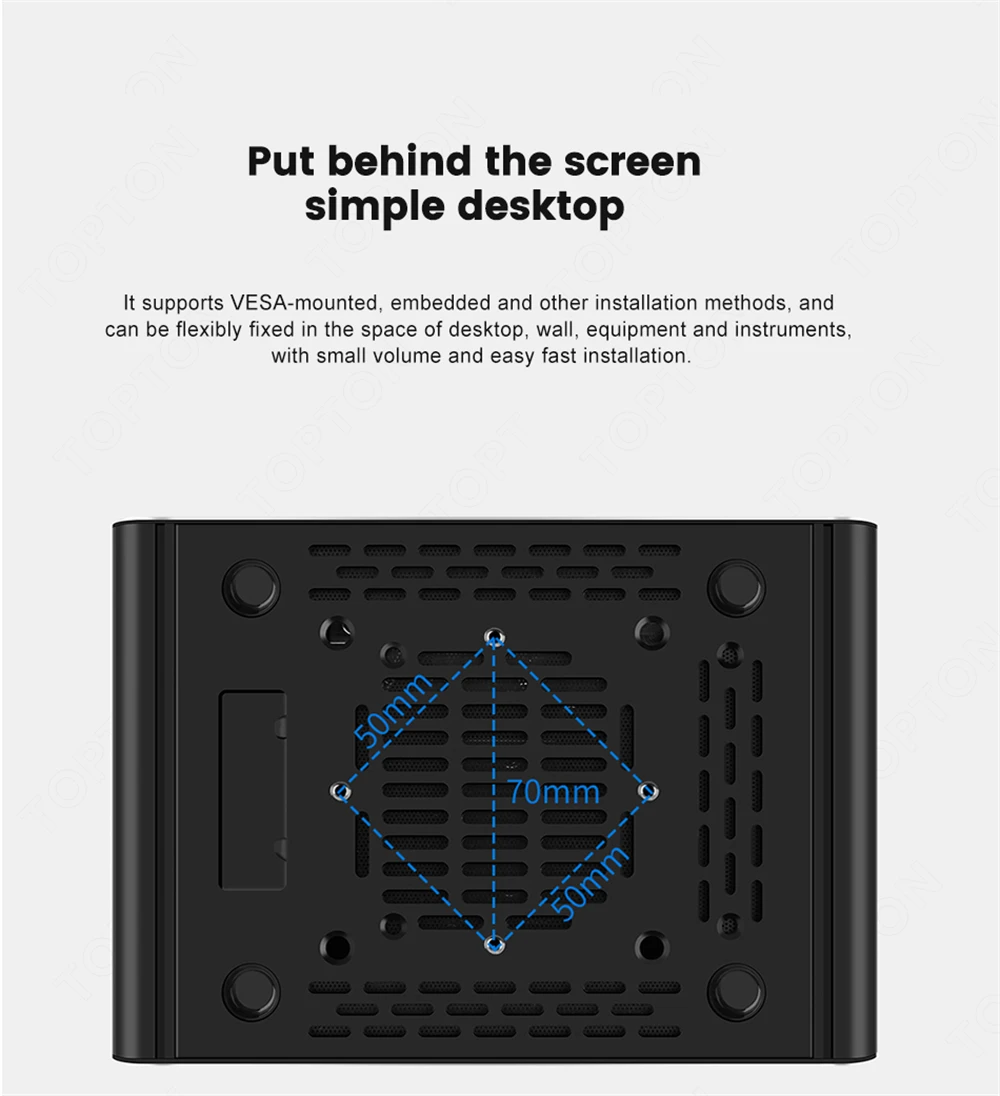

-Low consumption TDP 15W and can be mounted back of monitor by VESA bracket(optional).

Package List

1xMini PC

1xPower Adapter

1xPower Cord(EU/US/UK/AU plug based on buyer's country)

1xSATA Cable

1×8010 fan(gift)

Welcome to click the picture of VESA Bracket to order together if you need:

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “13th 12th Gen Fanless Mini PC USB4.0 i7 1355U i5 1335U i3 1315U Intel 6x i226-V LAN Firewall Appliance Soft Router Proxmox ESXi”

You must be logged in to post a review.

Shipping & Delivery

Q1. Can you provlde OEM/ODM service? How much do l need to pay for your OEM service?Re. Yes we can. The charges for OEl service depends on the different level of customize. the process of customization isfollowing.1) provide your specific requirement.2)our desiqn engineer draw the design draft3)you confirm the design draft.4) we start produce it.
Q2. Can you print my logo on the minl computer ?
Re. Yes, it is support . And we could print your logo on the pc for free !Pls contact me for logo printing ,)
Q3. What Is the Minimum Order Quantity (MOQ)?
Re: We can sell one piece sample for your test
Q4. What ls the lead tlme of your products?Re. Sample order within 3-7 business days . Bulk order within 3~15 business days ( depends on order gty) ,we will test themodel to insure the quality before shipping.
Q5. How wlll you dellver my goods to me?
Re. We shin by alr generally, in the meantime, we cooperate with intemnational expresses such as DHl. UpS, FedEx. andTNT tO enable our customers to get their goods rapidly.

Video

Ships From

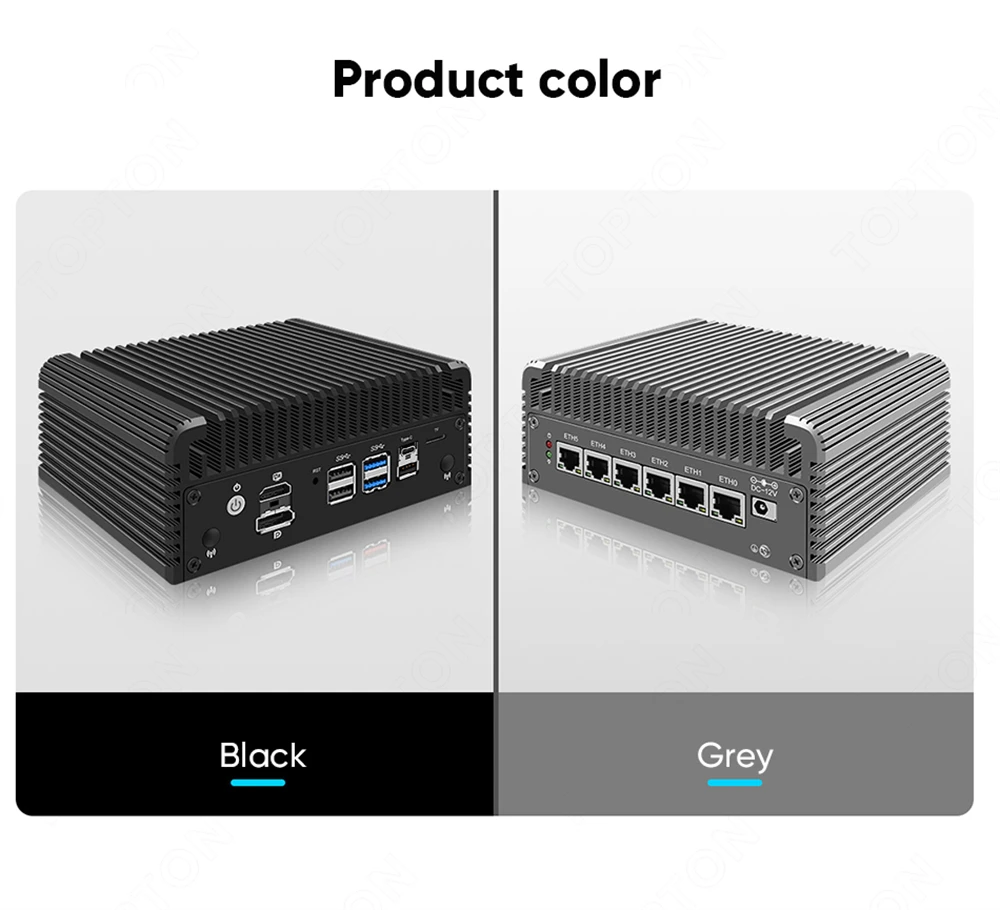

Color
