- Hign-concerned Chemical: None
- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X4DF
- Processor Brand: Intel
- Processor Model: N100/N6000/N5105/J4125
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
|
Processors |
Cores & Threads |
L3 Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
|
Alder Lake Intel N100 |
4 cores, 4 threads |
6M |
|
3.40 GHz |
6W |
|
Celeron N5105 |
4 cores, 4 threads |
4M |
2.00 GHz |
2.90 GHz |
10W |
|
Celeron J4125 |
4 cores, 4 threads |
4M |
2.00 GHz |
2.70 GHz |
10W |
|
Pentium Silver N6000 |
4 cores, 4 threads |
4M |
1.10 GHz |
3.00 GHz |
6W |
Product Highlight
N100 model: -1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.
N5105/N6000/J4125 model: -2xDDR4 SODIMM non-ecc ram slots, support 2400/2666MHz.

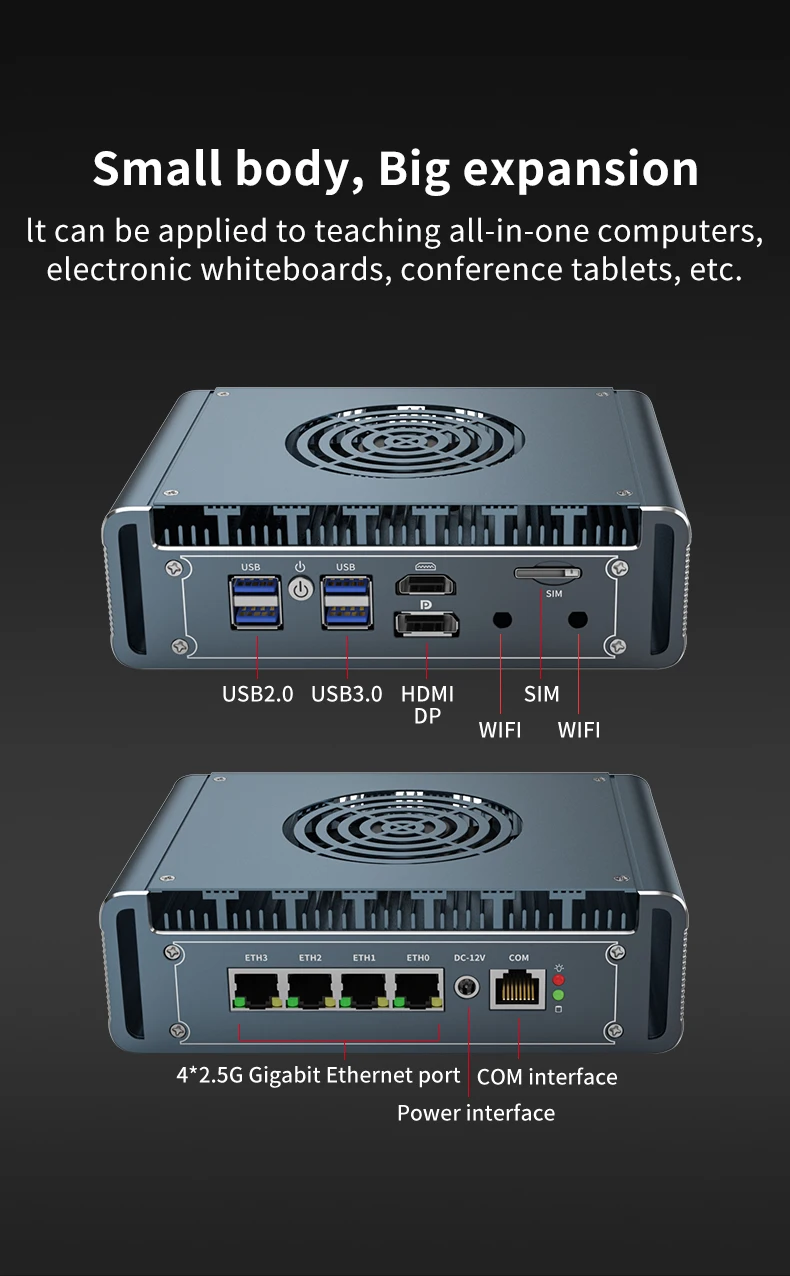

-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1×2.5''SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G/3G(USB signal, 3 choose 1) connection.
-Support 1xHDMI and 1xDP dual 4K video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Innovation: It is flexible to change between fanless system and fan system. A fan built in solid aluminum case with cooling fins gets much better heat dissipation to release CPU performance totally, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Welcome to click the picture of VESA Bracket to order together if you need:
