Packaging & delivery
- Selling Units:
- Single item
- Single package size:
- 35X30X10 cm
- Single gross weight:
- 2.500 kg
- Package Type:Paper box
- Lead time:
Quantity(pieces) 1 – 50 51 – 500 >500 Lead time (days) 15 30 To be negotiated

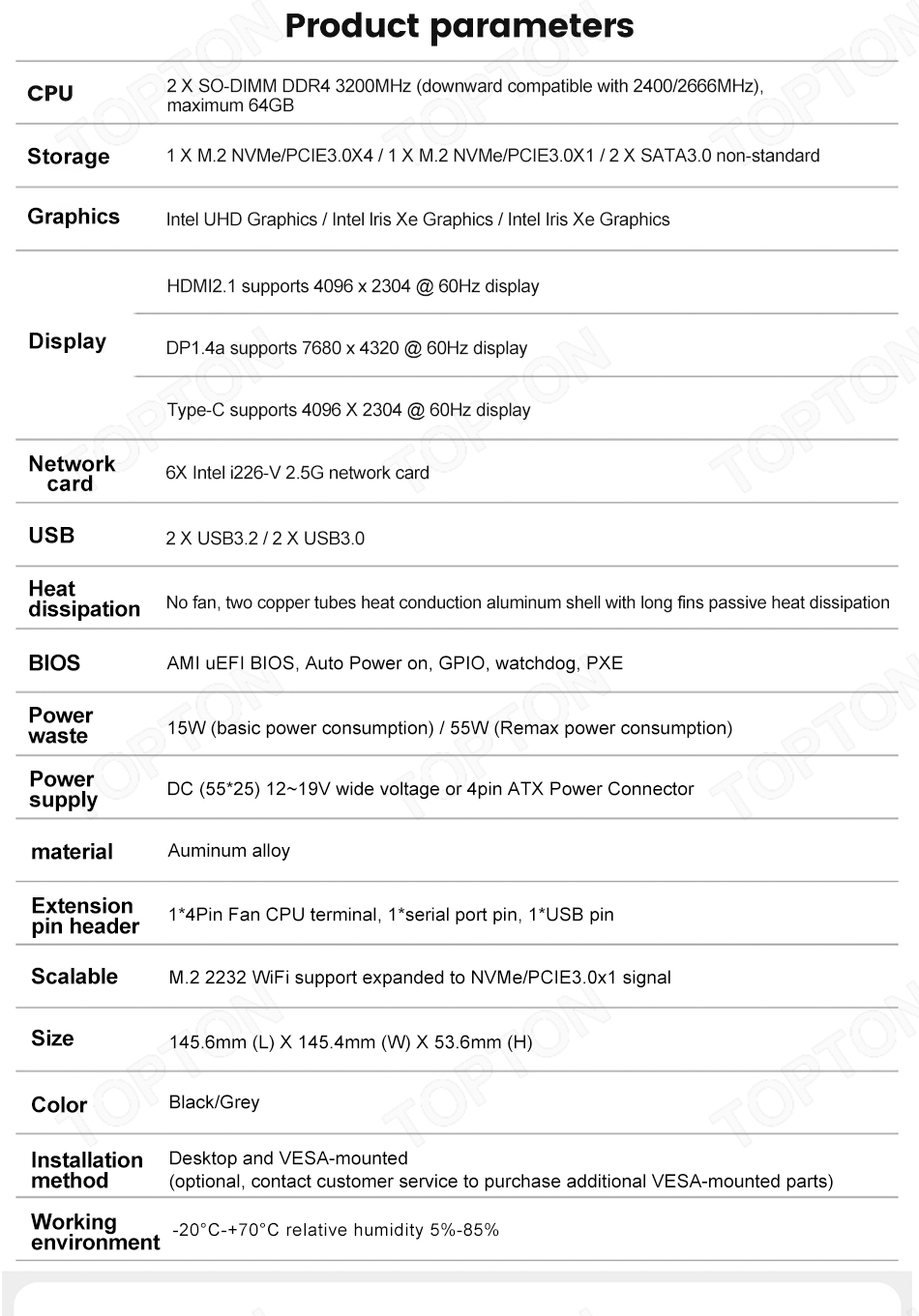

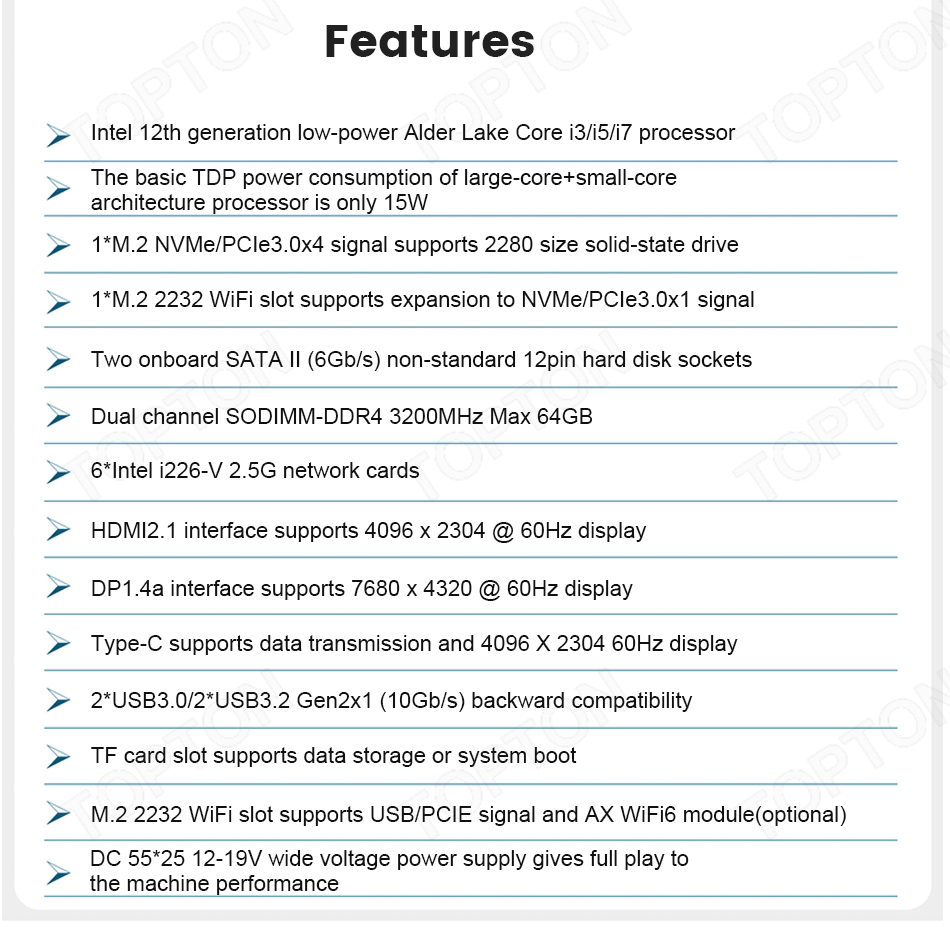

Product Highlight

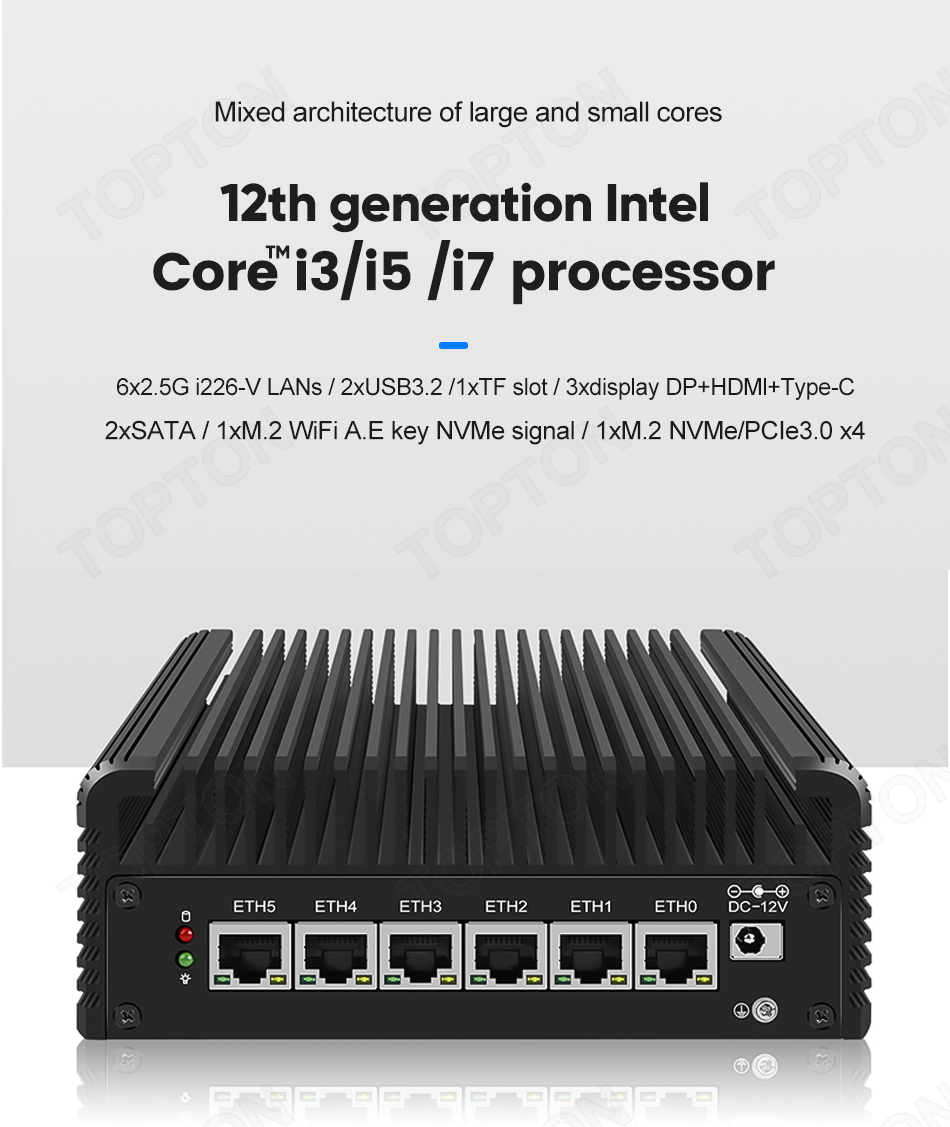

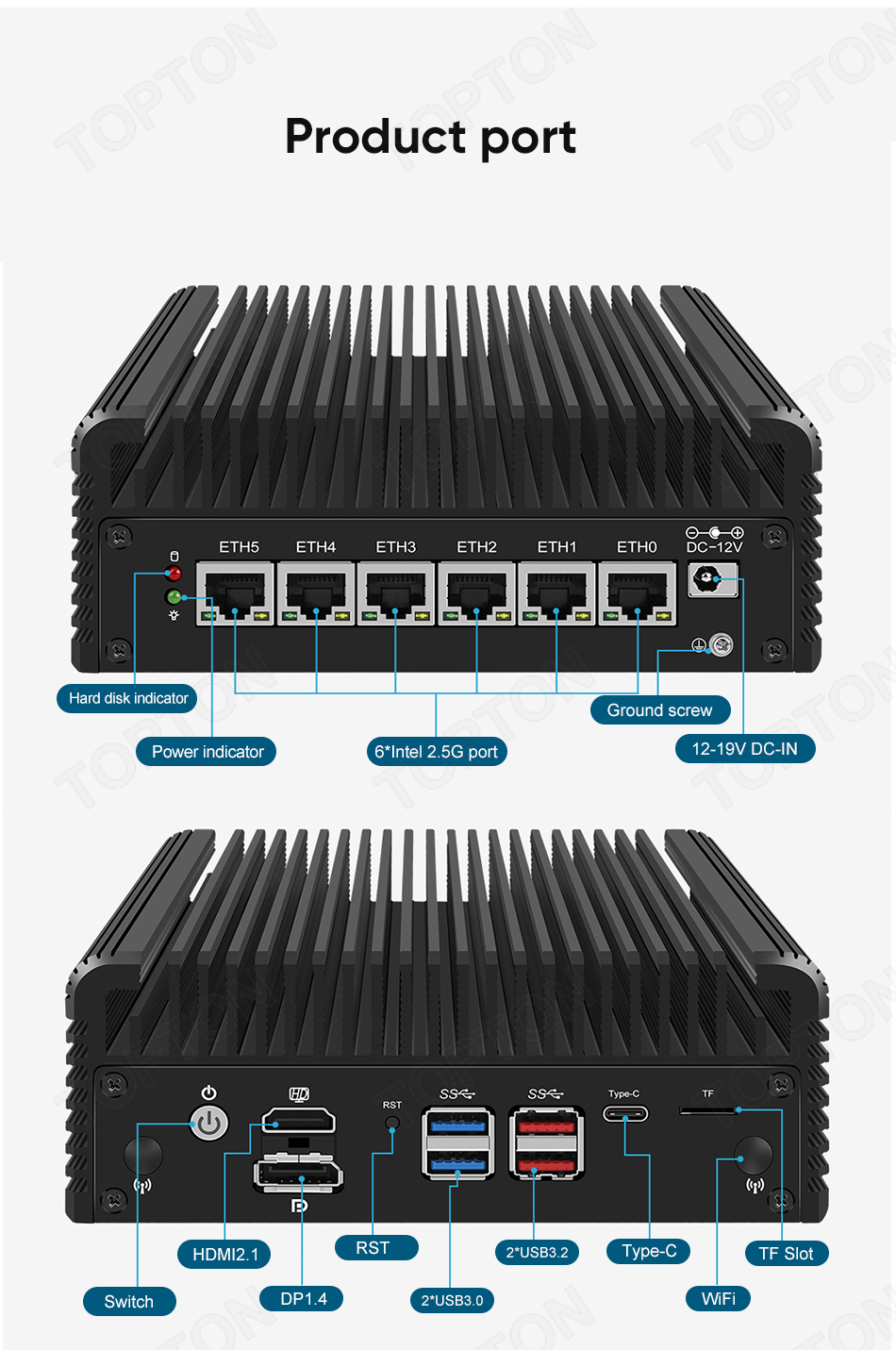

-6xIntel i226-V 2.5G UDE filter pure RJ45 LANs, 2xUSB3.2 Gen2(10Gb/s), 2xUSB2.0, 1xUSB Type-C, 1xTF card slot.
– 2xDDR4 SODIMM non-ecc ram slot, support 3200MHz.

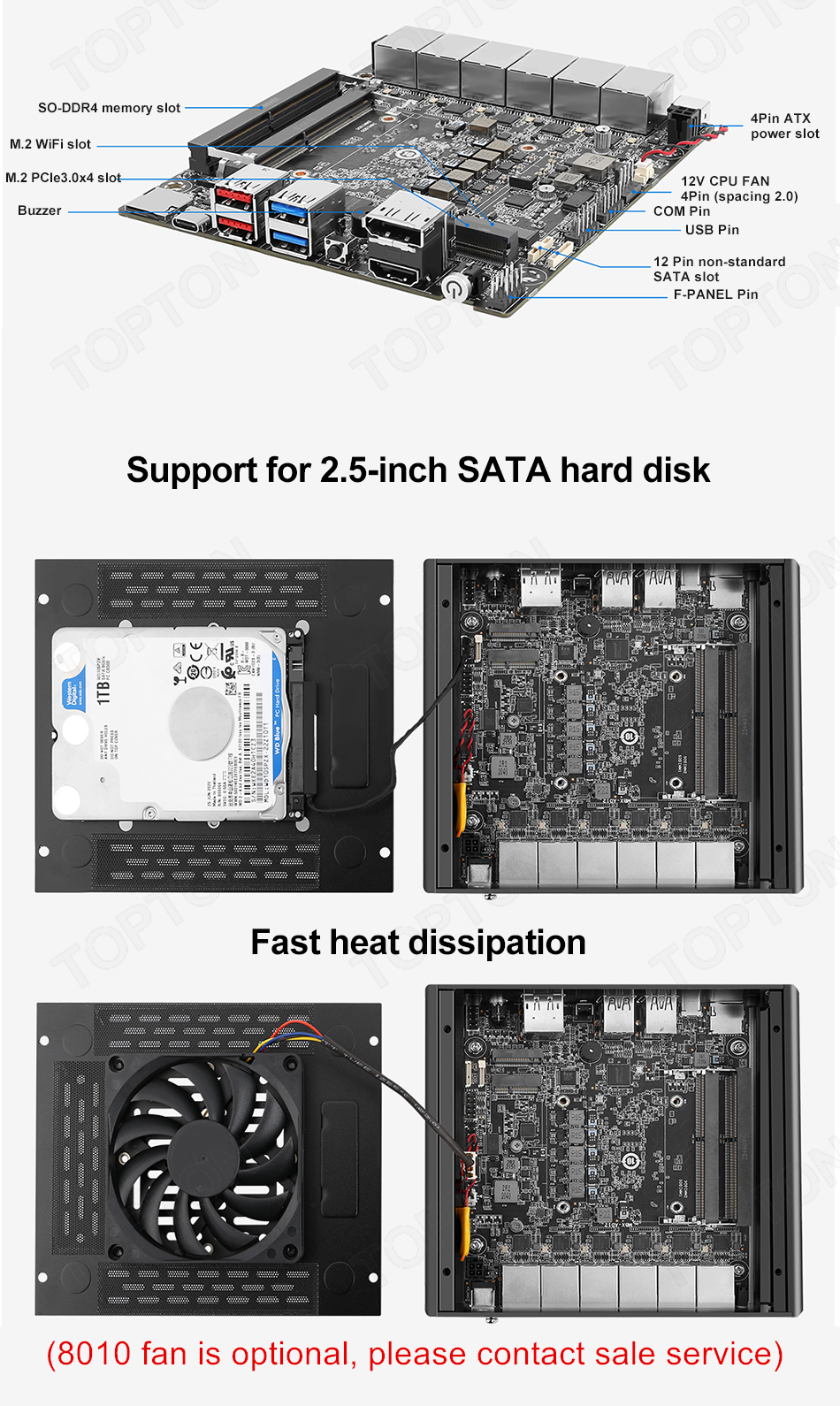

-Support dual storage: 1xM.2 2280 NVMe/PCIE3.0x4 SSD+1×2.5”SATA3.0 SSD/HDD.
-1xM.2 2232 slot, support CNVio2 WiFi6 connection(optional).
-TF card slot support storage and system disk boot.
-Support three display: 1xHDMI2.1, 1xDP1.4a, 1xType-C, 3x4K@60Hz UHD video display.
-Support wide voltage 12-19V input or ATX 4pins power supply.
-Support TPM2.0, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Innovative fanless design: Heavy aluminum solid-built heat-sink with dual copper tube and high tooth-fins, excellent cooling
performance, Exquisite production craft on outside design.
-Noiselessness, dustproof and durability fit for industrial grade field, work as long as 24 hours.
-Low consumption TDP 15W and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
1xScrews Bag

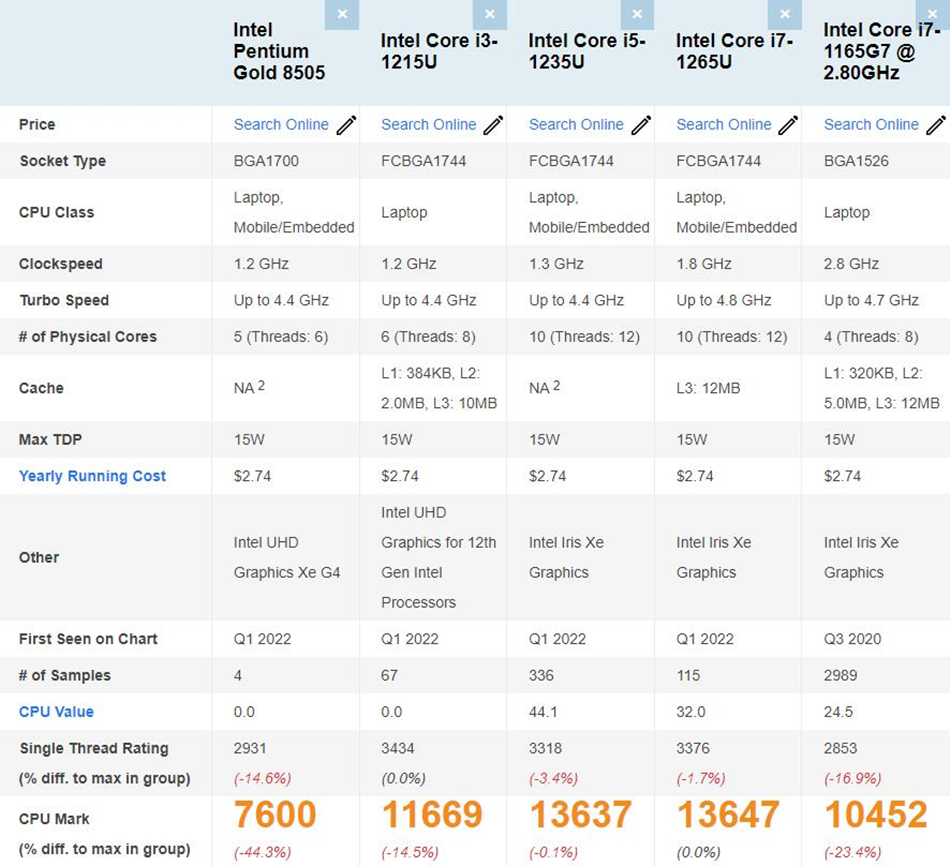

Processors | Cores & Threads | L3 Cache | Max Turbo Frequency | TDP | Graphics |
Pentium Gold 8505 | 5 cores, 6 threads | 8M | 4.40 GHz | 15W | Intel UHD Graphics max 1.10GHz |
Core i3 1215U | 6 cores, 8 threads | 10M | 4.40 GHz | 15W | Intel UHD Graphics max 1.10GHz |
Core i5 1235U | 10 cores, 12 threads | 12M | 4.40 GHz | 15W | Intel Iris Xe Graphics max 1.20GHz |
Core i7 1265U | 10 cores, 12 threads | 12M | 4.80 GHz | 15W | Intel Iris Xe Graphics max 1.25GHz |
A.OEM Service For large order quantity:
1. Put your brand LOGO on the device housing by laser printing
2. Put your own label below the device housing;
3. Provide Warranty Card on the package freely;
4. Set your own booting interface with your company logo or brand freely;
Welcome to inquire us about detailed OEM service, we will give some pictures for your reference.
B.Free Operating System before delivery:
Default installed our activated OEM cracked version Win7 or Win8 or Win10 in English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, XBMC(K-o-d-i), Ubuntu, Openelec etc if you need.
C.3 Years long warranty for our products.
D. We will reply you for your inquiry in 24 hours.
E. We can offer sample to test before bulk order.
1. Raw Material
2. Professional SMT process
Automatic SMT production line +
3. Function Test
4. Assembly
5. Aging Test
Safety packaging to ship ( Accept customized packaging )
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. What payment method do you accept ?
Re: T/T, Western Union, PayPal, Escrew, Alibaba Trade Assurance order payment; Money Gram, Cash, L/C, etc.
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can support 1unit sample for your test.
Q4. What is the lead time of your products?
Re: Sample order: 3-7 working days . Bulk order:3~15 working days ( depends on order qty);
Q5. How will you deliver my goods to me?
Re: We can ship by DHL, UPS, FedEx, TNT, etc international air express services;
Q6. What’s the warranty?
Re: 3 years long warranty ! Whole lifetime technical support, we have a professional team work for after-sales services, Please kindly feel free to contact us if any questions.
Re: We can do the products as per your configuration of CPU, RAM, hard disks, WiFi, I/O ports, color, size, customized OS, logo, etc.
